Steel rivet nut with flat head

25
.
01
NKP

Steel rivet nut with flat head are the most commonly used type of rivet nuts. The flange design ensures proper pressure and stable seating of the rivet nut in the hole.

Buy in Marcopol e-shop
Ask for product

Product inquiry form

Contact: +48 58 55 40 410 export@marcopol.eu

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Recommended

Group
2501

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Thread diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Sleeve diameter d1 [mm]
Riveting range s [mm]
Flange height k [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

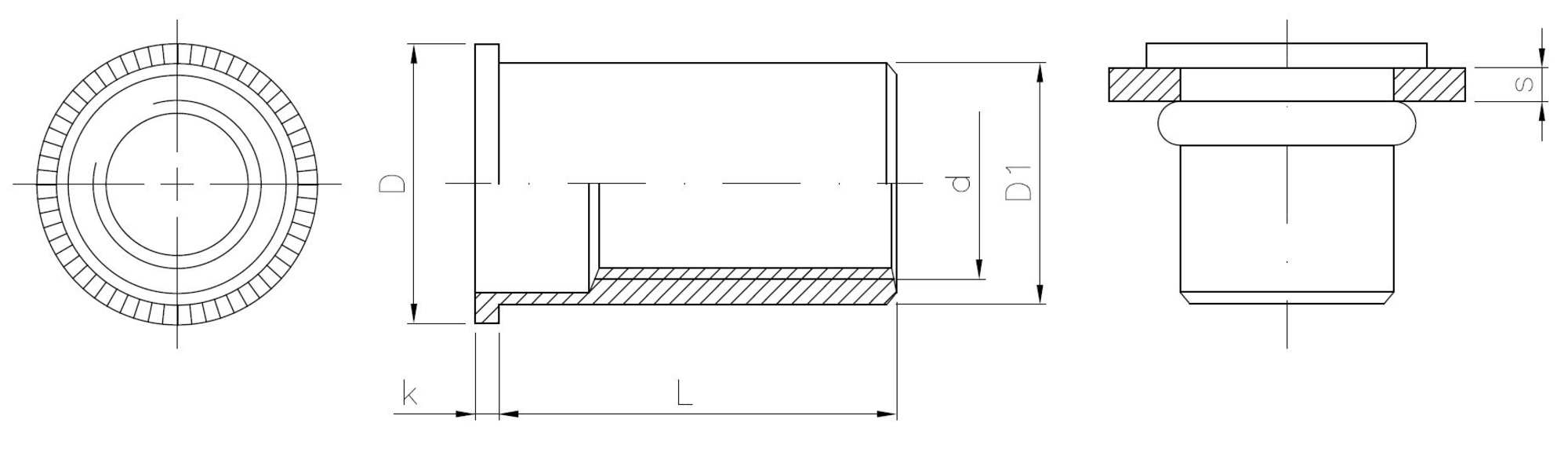

Thread diameter d [mm] Length L [mm] Flange diameter D [mm] Sleeve diameter d1 [mm] Riveting range s [mm] Flange height k [mm] Variety of coating Unit of measure Availability Show More
2501040100STT
M4 10.0 8.5 5.9 0.5-2.0 0.8 white zinc plating THS
2501050120STT
M5 12.0 10.0 6.9 0.5-2.5 1.0 white zinc plating THS
2501050160STT
M5 16.0 10.0 6.9 2.5-5.0 1.0 white zinc plating THS
2501060140STT
M6 14.0 12.3 8.9 0.5-3.0 1.3 white zinc plating THS
2501060165STT
M6 16.5 12.3 8.9 3.0-5.5 1.3 white zinc plating THS
2501080160STT
M8 16.0 15.0 10.9 0.5-3.5 1.5 white zinc plating THS
2501080195STT
M8 19.5 15.0 10.9 3.5-6.0 1.5 white zinc plating THS
2501100155STT
M10 15.5 16.3 12.9 0.5-2.5 1.6 white zinc plating THS
2501100175STT
M10 17.5 16.0 12.0 1.0-3.5 1.6 white zinc plating THS
2501100195STT
M10 19.5 17.0 12.9 2.5-4.0 1.6 white zinc plating THS
2501100225STT
M10 22.5 17.0 12.9 4.0-6.0 1.6 white zinc plating THS
2501120200STT
M12 20.0 18.0 14.9 1.0-4.0 1.7 white zinc plating THS
2501120230STT
M12 23.0 18.0 14.9 4.0-6.5 1.7 white zinc plating THS
2501160303STT
white zinc plating THS
