Steel rivet nut with reduced countersunk flat head

25
.
04
NKSM

Steel rivet nut with reduced countersunk flat head are installed in chamfered holes to ensure they are flush with the surface of the joined material.

Buy in Marcopol e-shop
Ask for product

Product inquiry form

Contact: +48 58 55 40 410 export@marcopol.eu

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Recommended

Group
2504

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Thread diameter d [mm]
Length L [mm]
Flange diameter D [mm]
Sleeve diameter d1 [mm]
Riveting range s [mm]
Flange height k [mm]
Variety of coating
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

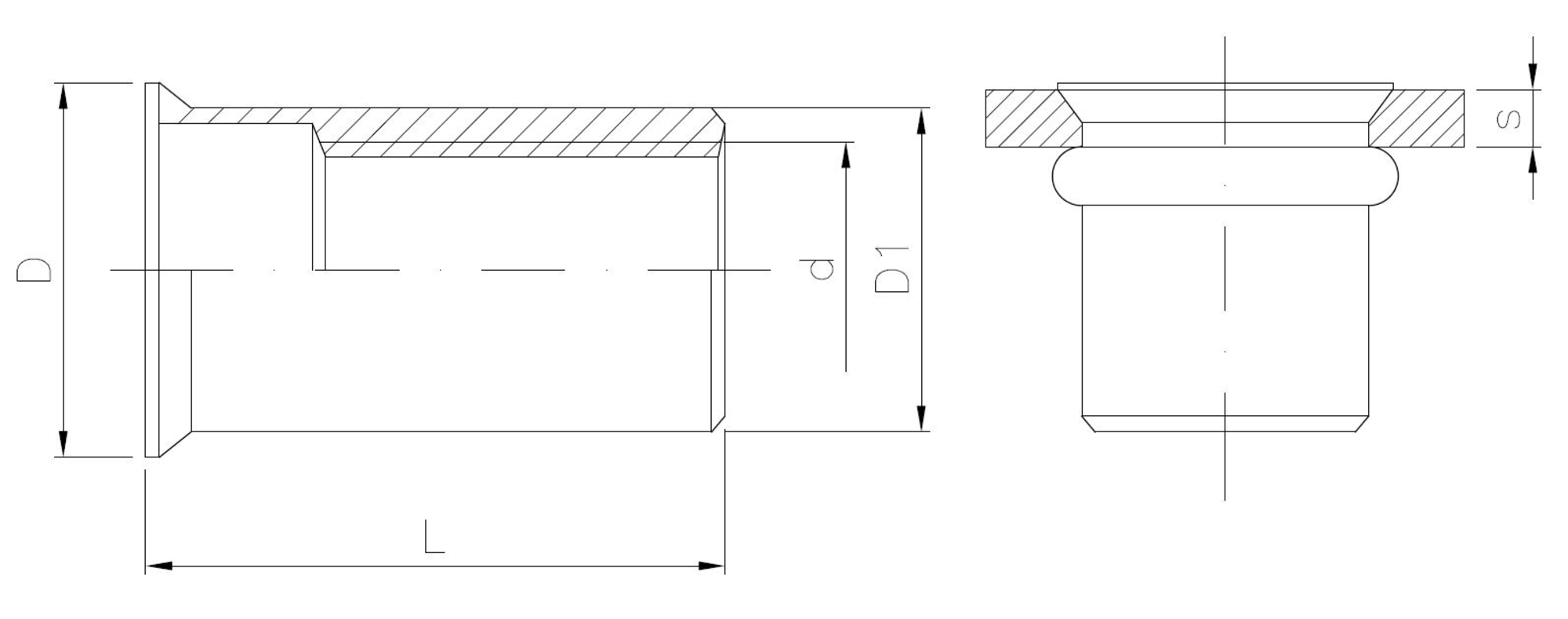

Thread diameter d [mm] Length L [mm] Flange diameter D [mm] Sleeve diameter d1 [mm] Riveting range s [mm] Flange height k [mm] Variety of coating Unit of measure Availability Show More
2504040105STT
M4 10.5 7.0 5.9 0.5-2.0 0.50 white zinc plating THS
2504050115STT
M5 11.5 8.0 6.9 0.5-2.0 0.50 white zinc plating THS
2504060140STT
M6 14.0 10.5 8.9 0.5-2.5 0.60 white zinc plating THS
2504080165STT
M8 16.5 12.0 10.9 0.5-3.0 0.65 white zinc plating THS
