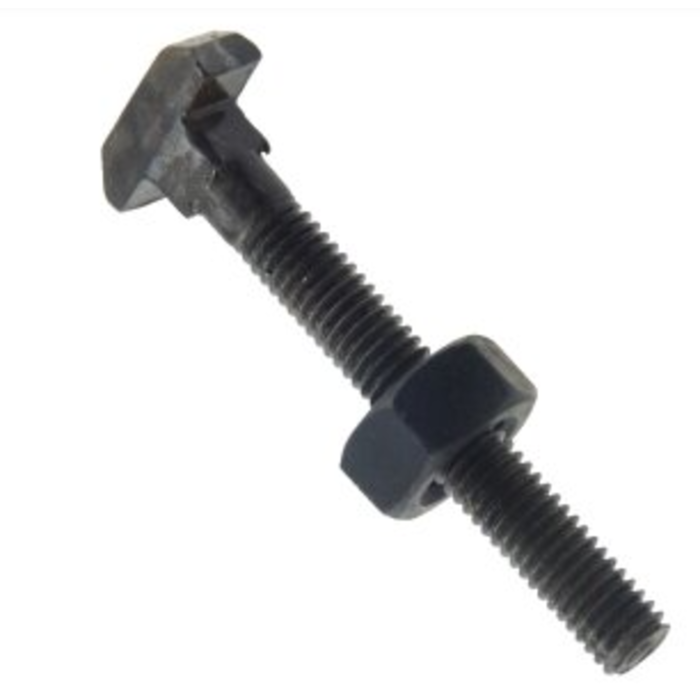

T-bolt with carriage and hexagon nut

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

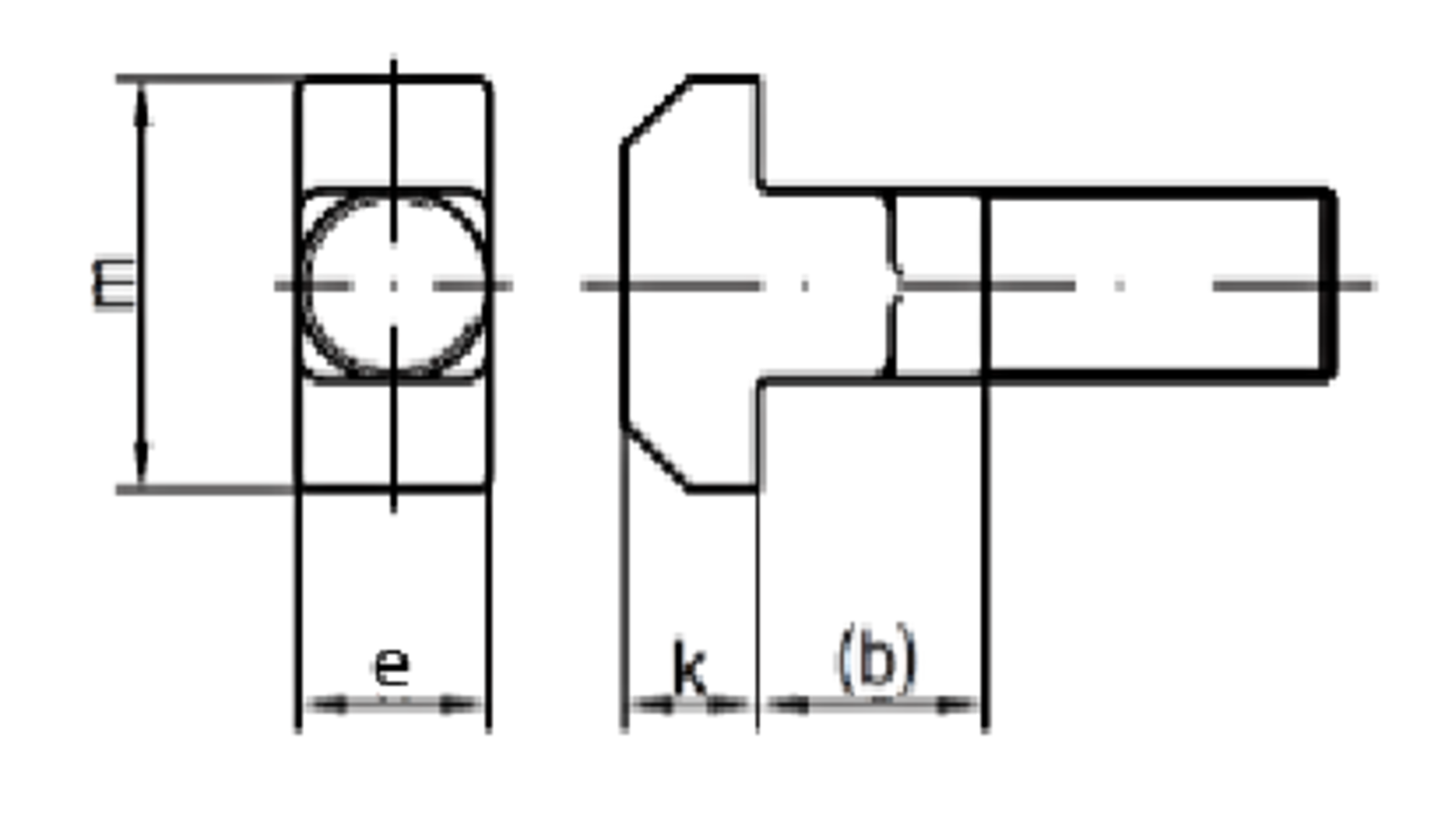

Dimension d [mm]

Dimension L [mm]

Class of mechanical properties

Variety of coating

Dimension k [mm]

Dimension b [mm]

Dimension m [mm]

Dimension e [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Dimension d [mm]	Dimension L [mm]	Class of mechanical properties	Variety of coating	Dimension k [mm]	Dimension b [mm]	Dimension m [mm]	Dimension e [mm]	Unit of measure	Availability

1142060025S46D186P	M6	25	4.6	raw	4.5	10	16	6	SET	Product on request
1142060030S46D186P	M6	30	4.6	raw	4.5	10	16	6	SET	Product on request
1142060045S46D186P	M6	45	4.6	raw	4.5	10	16	6	SET	Product on request
1142060050S46D186P	M6	50	4.6	raw	4.5	10	16	6	SET	Product on request
1142060060S46D186P	M6	60	4.6	raw	4.5	10	16	6	SET	Product on request
1142080025S46D186P	M8	25	4.6	raw	5.5	13	18	8	SET	Product on request
1142080030S46D186P	M8	30	4.6	raw	5.5	13	18	8	SET	Product on request
1142080035S46D186P	M8	35	4.6	raw	5.5	13	18	8	SET	Product on request
1142080040S46D186P	M8	40	4.6	raw	5.5	13	18	8	SET	Product on request
1142080045S46D186P	M8	45	4.6	raw	5.5	13	18	8	SET	Product on request
1142080050S46D186P	M8	50	4.6	raw	5.5	13	18	8	SET	Product on request
1142080060S46D186P	M8	60	4.6	raw	5.5	13	18	8	SET	Product on request
1142080080S46D186P	M8	80	4.6	raw	5.5	13	18	8	SET	Product on request
1142100025S46D186P	M10	25	4.6	raw	7	16	21	10	SET	Product on request
1142100030S46D186P	M10	30	4.6	raw	7	16	21	10	SET	Product on request
1142100035S46D186P	M10	35	4.6	raw	7	16	21	10	SET	Product on request
1142100040S46D186P	M10	40	4.6	raw	7	16	21	10	SET	Product on request
1142100045S46D186P	M10	45	4.6	raw	7	16	21	10	SET	Product on request
1142100050S46D186P	M10	50	4.6	raw	7	16	21	10	SET	Product on request
1142100055S46D186P	M10	55	4.6	raw	7	16	21	10	SET	Product on request
1142100060S46D186P	M10	60	4.6	raw	7	16	21	10	SET	Product on request
1142100065S46D186P	M10	65	4.6	raw	7	16	21	10	SET	Product on request
1142100070S46D186P	M10	70	4.6	raw	7	16	21	10	SET	Product on request
1142100080S46D186P	M10	80	4.6	raw	7	16	21	10	SET	Product on request
1142100090S46D186P	M10	90	4.6	raw	7	16	21	10	SET	Product on request
1142100100S46D186P	M10	100	4.6	raw	7	16	21	10	SET	Product on request
1142100110S46D186P	M10	110	4.6	raw	7	16	21	10	SET	Product on request
1142120030S46D186P	M12	30	4.6	raw	8	19	26	12	SET	Product on request
1142120035S46D186P	M12	35	4.6	raw	8	19	26	12	SET	Product on request
1142120040S46D186P	M12	40	4.6	raw	8	19	26	12	SET	Product on request
1142120045S46D186P	M12	45	4.6	raw	8	19	26	12	SET	Product on request
1142120050S46D186P	M12	50	4.6	raw	8	19	26	12	SET	Product on request
1142120055S46D186P	M12	55	4.6	raw	8	19	26	12	SET	Product on request
1142120060S46D186P	M12	60	4.6	raw	8	19	26	12	SET	Product on request
1142120065S46D186P	M12	65	4.6	raw	8	19	26	12	SET	Product on request
1142120070S46D186P	M12	70	4.6	raw	8	19	26	12	SET	Product on request
1142120080S46D186P	M12	80	4.6	raw	8	19	26	12	SET	Product on request
1142120090S46D186P	M12	90	4.6	raw	8	19	26	12	SET	Product on request
1142120100S46D186P	M12	100	4.6	raw	8	19	26	12	SET	Product on request
1142120110S46D186P	M12	110	4.6	raw	8	19	26	12	SET	Product on request
1142120120S46D186P	M12	120	4.6	raw	8	19	26	12	SET	Product on request
1142160040S46D186P	M16	40	4.6	raw	10.5	25	30	16	SET	Product on request
1142160045S46D186P	M16	45	4.6	raw	10.5	25	30	16	SET	Product on request
1142160050S46D186P	M16	50	4.6	raw	10.5	25	30	16	SET	Product on request
1142160060S46D186P	M16	60	4.6	raw	10.5	25	30	16	SET	Product on request
1142160065S46D186P	M16	65	4.6	raw	10.5	25	30	16	SET	Product on request
1142160070S46D186P	M16	70	4.6	raw	10.5	25	30	16	SET	Product on request
1142160075S46D186P	M16	75	4.6	raw	10.5	25	30	16	SET	Product on request
1142160080S46D186P	M16	80	4.6	raw	10.5	25	30	16	SET	Product on request
1142160090S46D186P	M16	90	4.6	raw	10.5	25	30	16	SET	Product on request
1142160100S46D186P	M16	100	4.6	raw	10.5	25	30	16	SET	Product on request
1142160110S46D186P	M16	110	4.6	raw	10.5	25	30	16	SET	Product on request
1142160120S46D186P	M16	120	4.6	raw	10.5	25	30	16	SET	Product on request
1142160130S46D186P	M16	130	4.6	raw	10.5	25	30	16	SET	Product on request
1142160140S46D186P	M16	140	4.6	raw	10.5	25	30	16	SET	Product on request
1142160160S46D186P	M16	160	4.6	raw	10.5	25	30	16	SET	Product on request
1142200060S46D186P	M20	60	4.6	raw	13	31	36	20	SET	Product on request
1142200070S46D186P	M20	70	4.6	raw	13	31	36	20	SET	Product on request
1142200080S46D186P	M20	80	4.6	raw	13	31	36	20	SET	Product on request
1142200090S46D186P	M20	90	4.6	raw	13	31	36	20	SET	Product on request
1142200100S46D186P	M20	100	4.6	raw	13	31	36	20	SET	Product on request
1142200120S46D186P	M20	120	4.6	raw	13	31	36	20	SET	Product on request
1142200140S46D186P	M20	140	4.6	raw	13	31	36	20	SET	Product on request
1142200160S46D186P	M20	160	4.6	raw	13	31	36	20	SET	Product on request
1142200200S46D186P	M20	200	4.6	raw	13	31	36	20	SET	Product on request
1142240070S46D186P	M24	70	4.6	raw	15	37	43	24	SET	Product on request
1142240080S46D186P	M24	80	4.6	raw	15	37	43	24	SET	Product on request
1142240090S46D186P	M24	90	4.6	raw	15	37	43	24	SET	Product on request
1142240100S46D186P	M24	100	4.6	raw	15	37	43	24	SET	Product on request
1142240110S46D186P	M24	110	4.6	raw	15	37	43	24	SET	Product on request
1142240120S46D186P	M24	120	4.6	raw	15	37	43	24	SET	Product on request
1142240160S46D186P	M24	160	4.6	raw	15	37	43	24	SET	Product on request
1142240200S46D186P	M24	200	4.6	raw	15	37	43	24	SET	Product on request
