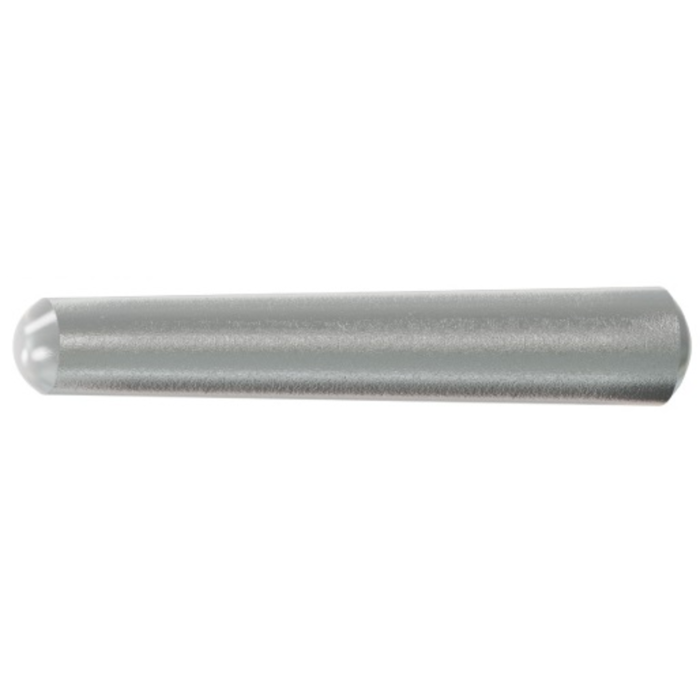

Tapered pin

16
.
47

Taper pins are a reliable solution when it is necessary to securely and permanently hold structural elements in specific positions. Their simple design and versatility make them widely used in various industrial sectors.

Application:

Taper pins are utilized in various fields, ranging from the automotive and electronics industries to furniture manufacturing and steel constructions. They primarily serve to maintain components in specified positions, both during assembly and throughout operation.

Benefits:

  • Tapered design ensuring stability.
  • Mechanical strength guaranteeing secure retention of components.
  • Easy installation and removal.
  • Universal application across different industries.
  • Availability of various sizes, allowing for flexible application.
View in store

Recommended

Group
1647

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension a [mm]
Dimension c [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

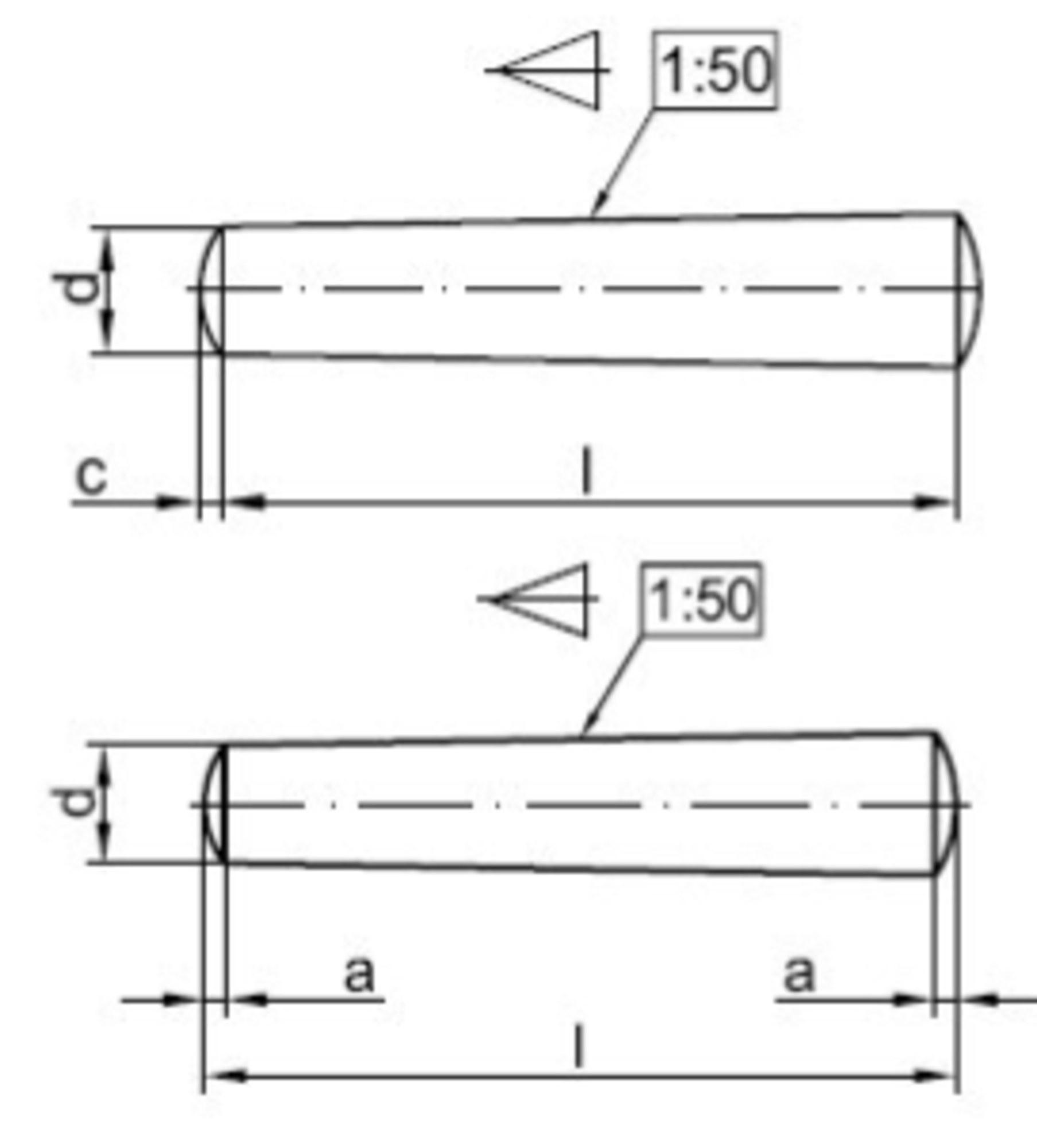

Dimension d [mm] Dimension L [mm] Dimension a [mm] Dimension c [mm] Variety of coating Standard Unit of measure Availability Show More
1647010012SI2339BT
1 12 0.12 raw ISO 2339B THS
1647010014SI2339BT
1 14 0.12 raw ISO 2339B THS
1647010016SI2339BT
1 16 0.12 raw ISO 2339B THS
1647010018SI2339BT
1 18 0.12 raw ISO 2339B THS
1647015010SI2339BT
1.5 10 0.2 raw ISO 2339B THS
1647015012SI2339BT
1.5 12 0.2 raw ISO 2339B THS
1647015014SI2339BT
1.5 14 0.2 raw ISO 2339B THS
1647015016SI2339BT
1.5 16 0.2 raw ISO 2339B THS
1647015018SI2339BT
1.5 18 0.2 raw ISO 2339B THS
1647015020SI2339BT
1.5 20 0.2 raw ISO 2339B THS
1647015022SI2339BT
1.5 22 0.2 raw ISO 2339B THS
1647015024SI2339BT
1.5 24 0.2 raw ISO 2339B THS
1647015026SI2339BT
1.5 26 0.2 raw ISO 2339B THS
1647015028SI2339BT
1.5 28 0.2 raw ISO 2339B THS
1647015030SI2339BT
1.5 30 0.2 raw ISO 2339B THS
1647020010SI2339BT
2 10 0.25 raw ISO 2339B THS
1647020012SI2339BT
2 12 0.25 raw ISO 2339B THS
1647020014SI2339BT
2 14 0.25 raw ISO 2339B THS
1647020016SI2339BT
2 16 0.25 raw ISO 2339B THS
1647020018SI2339BT
2 18 0.25 raw ISO 2339B THS
1647020020SI2339BT
2 20 0.25 raw ISO 2339B THS
1647020022SI2339BT
2 22 0.25 raw ISO 2339B THS
1647020024SI2339BT
2 24 0.25 raw ISO 2339B THS
1647020026SI2339BT
2 26 0.25 raw ISO 2339B THS
1647020028SI2339BT
2 28 0.25 raw ISO 2339B THS
1647020030SI2339BT
2 30 0.25 raw ISO 2339B THS
1647020032SI2339BT
2 32 0.25 raw ISO 2339B THS
1647020036SI2339BT
2 36 0.25 raw ISO 2339B THS
1647020040SI2339BT
2 40 0.25 raw ISO 2339B THS
1647020045SI2339BT
2 45 0.25 raw ISO 2339B THS
1647020050SI2339BT
2 50 0.25 raw ISO 2339B THS
1647025010SI2339BT
2.5 10 0.3 raw ISO 2339B THS
1647025012SI2339BT
2.5 12 0.3 raw ISO 2339B THS
1647025014SI2339BT
2.5 14 0.3 raw ISO 2339B THS
1647025016SI2339BT
2.5 16 0.3 raw ISO 2339B THS
1647025018SI2339BT
2.5 18 0.3 raw ISO 2339B THS
1647025020SI2339BT
2.5 20 0.3 raw ISO 2339B THS
1647025022SI2339BT
2.5 22 0.3 raw ISO 2339B THS
1647025024SI2339BT
2.5 24 0.3 raw ISO 2339B THS
1647025026SI2339BT
2.5 26 0.3 raw ISO 2339B THS
1647025028SI2339BT
2.5 28 0.3 raw ISO 2339B THS
1647025030SI2339BT
2.5 30 0.3 raw ISO 2339B THS
1647025032SI2339BT
2.5 32 0.3 raw ISO 2339B THS
1647025036SI2339BT
2.5 36 0.3 raw ISO 2339B THS
1647025040SI2339BT
2.5 40 0.3 raw ISO 2339B THS
1647025045SI2339BT
2.5 45 0.3 raw ISO 2339B THS
1647025050SI2339BT
2.5 50 0.3 raw ISO 2339B THS
1647025055SI2339BT
2.5 55 0.3 raw ISO 2339B THS
1647025060SI2339BT
2.5 60 0.3 raw ISO 2339B THS
1647030010SI2339BT
3 10 0.4 raw ISO 2339B THS
1647030012SI2339BT
3 12 0.4 raw ISO 2339B THS
1647030014SI2339BT
3 14 0.4 raw ISO 2339B THS
1647030016SI2339BT
3 16 0.4 raw ISO 2339B THS
1647030018SI2339BT
3 18 0.4 raw ISO 2339B THS
1647030020SD1BT
3 20 0.45 raw DIN 1B THS
1647030020SI2339BT
3 20 0.4 raw ISO 2339B THS
1647030022SI2339BT
3 22 0.4 raw ISO 2339B THS
1647030024SI2339BT
3 24 0.4 raw ISO 2339B THS
1647030026SD1BT
3 26 0.45 raw DIN 1B THS
1647030026SI2339BT
3 26 0.4 raw ISO 2339B THS
1647030028SI2339BT
3 28 0.4 raw ISO 2339B THS
1647030030SD1BT
3 30 0.45 raw DIN 1B THS
1647030030SI2339BT
3 30 0.4 raw ISO 2339B THS
1647030032SI2339BT
3 32 0.4 raw ISO 2339B THS
1647030036SI2339BT
3 36 0.4 raw ISO 2339B THS
1647030040SD1BT
3 40 0.45 raw DIN 1B THS
1647030040SI2339BT
3 40 0.4 raw ISO 2339B THS
1647030045SD1BT
3 45 0.45 raw DIN 1B THS
1647030045SI2339BT
3 45 0.4 raw ISO 2339B THS
1647030050SD1BT
3 50 0.45 raw DIN 1B THS
1647030050SI2339BT
3 50 0.4 raw ISO 2339B THS
1647030055SI2339BT
3 55 0.4 raw ISO 2339B THS
1647030060SI2339BT
3 60 0.4 raw ISO 2339B THS
1647040010SI2339BT
4 10 0.5 raw ISO 2339B THS
1647040012SI2339BT
4 12 0.5 raw ISO 2339B THS
1647040014SI2339BT
4 14 0.5 raw ISO 2339B THS
1647040016SD1BT
4 16 0.6 raw DIN 1B THS
1647040016SI2339BT
4 16 0.5 raw ISO 2339B THS
1647040018SI2339BT
4 18 0.5 raw ISO 2339B THS
1647040020SD1BT
4 20 0.6 raw DIN 1B THS
1647040020SI2339BT
4 20 0.5 raw ISO 2339B THS
1647040022SI2339BT
4 22 0.5 raw ISO 2339B THS
1647040024SI2339BT
4 24 0.5 raw ISO 2339B THS
1647040026SD1BT
4 26 0.6 raw DIN 1B THS
1647040026SI2339BT
4 26 0.5 raw ISO 2339B THS
1647040028SI2339BT
4 28 0.5 raw ISO 2339B THS
1647040030SD1BT
4 30 0.6 raw DIN 1B THS
1647040030SI2339BT
4 30 0.5 raw ISO 2339B THS
1647040032SI2339BT
4 32 0.5 raw ISO 2339B THS
1647040036SI2339BT
4 36 0.5 raw ISO 2339B THS
1647040040SD1BT
4 40 0.6 raw DIN 1B THS
1647040040SI2339BT
4 40 0.5 raw ISO 2339B THS
1647040045SI2339BT
4 45 0.5 raw ISO 2339B THS
1647040050SD1BT
4 50 0.6 raw DIN 1B THS
1647040050SI2339BT
4 50 0.5 raw ISO 2339B THS
1647040055SD1BT
4 55 0.6 raw DIN 1B THS
1647040055SI2339BT
4 55 0.5 raw ISO 2339B THS
1647040060SD1BT
4 60 0.6 raw DIN 1B THS
1647040060SI2339BT
4 60 0.5 raw ISO 2339B THS
1647040070SI2339BT
4 70 0.5 raw ISO 2339B THS
1647040080SI2339BT
4 80 0.5 raw ISO 2339B THS
1647040090SI2339BT
4 90 0.5 raw ISO 2339B THS
1647040100SD1BT
4 100 0.6 raw DIN 1B THS
1647040100SI2339BT
4 100 0.5 raw ISO 2339B THS
1647050014SI2339BT
5 14 0.63 raw ISO 2339B THS
1647050016SI2339BT
5 16 0.63 raw ISO 2339B THS
1647050018SI2339BT
5 18 0.63 raw ISO 2339B THS
1647050020SD1BT
5 20 0.75 raw DIN 1B THS
1647050020SI2339BT
5 20 0.63 raw ISO 2339B THS
1647050022SI2339BT
5 22 0.63 raw ISO 2339B THS
1647050024SI2339BT
5 24 0.63 raw ISO 2339B THS
1647050026SD1BT
5 26 0.75 raw DIN 1B THS
1647050026SI2339BT
5 26 0.63 raw ISO 2339B THS
1647050028SI2339BT
5 28 0.63 raw ISO 2339B THS
1647050030SD1BT
5 30 0.75 raw DIN 1B THS
1647050030SI2339BT
5 30 0.63 raw ISO 2339B THS
1647050032SI2339BT
5 32 0.63 raw ISO 2339B THS
1647050036SD1BT
5 36 0.75 raw DIN 1B THS
1647050036SI2339BT
5 36 0.63 raw ISO 2339B THS
1647050040SD1BT
5 40 0.75 raw DIN 1B THS
1647050040SI2339BT
5 40 0.63 raw ISO 2339B THS
1647050045SI2339BT
5 45 0.63 raw ISO 2339B THS
1647050050SD1BT
5 50 0.75 raw DIN 1B THS
1647050050SI2339BT
5 50 0.63 raw ISO 2339B THS
1647050055SI2339BT
5 55 0.63 raw ISO 2339B THS
1647050060SD1BT
5 60 0.75 raw DIN 1B THS
1647050060SI2339BT
5 60 0.63 raw ISO 2339B THS
1647050065SI2339BT
5 65 0.63 raw ISO 2339B THS
1647050070SD1BT
5 70 0.75 raw DIN 1B THS
1647050070SI2339BT
5 70 0.63 raw ISO 2339B THS
1647050080SI2339BT
5 80 0.63 raw ISO 2339B THS
1647050090SI2339BT
5 90 0.63 raw ISO 2339B THS
1647050100SD1BT
5 100 0.75 raw DIN 1B THS
1647050100SI2339BT
5 100 0.63 raw ISO 2339B THS
1647060020SI2339BT
6 20 0.8 raw ISO 2339B THS
1647060022SI2339BT
6 22 0.8 raw ISO 2339B THS
1647060024SD1BT
6 24 0.9 raw DIN 1B THS
1647060024SI2339BT
6 24 0.8 raw ISO 2339B THS
1647060026SI2339BT
6 26 0.8 raw ISO 2339B THS
1647060028SI2339BT
6 28 0.8 raw ISO 2339B THS
1647060030SD1BT
6 30 0.9 raw DIN 1B THS
1647060030SI2339BT
6 30 0.8 raw ISO 2339B THS
1647060032SI2339BT
6 32 0.8 raw ISO 2339B THS
1647060036SI2339BT
6 36 0.8 raw ISO 2339B THS
1647060040SD1BT
6 40 0.9 raw DIN 1B THS
1647060040SI2339BT
6 40 0.8 raw ISO 2339B THS
1647060045SD1BT
6 45 0.9 raw DIN 1B THS
1647060045SI2339BT
6 45 0.8 raw ISO 2339B THS
1647060050SD1BT
6 50 0.9 raw DIN 1B THS
1647060050SI2339BT
6 50 0.8 raw ISO 2339B THS
1647060055SD1BT
6 55 0.9 raw DIN 1B THS
1647060055SI2339BT
6 55 0.8 raw ISO 2339B THS
1647060060SD1BT
6 60 0.9 raw DIN 1B THS
1647060060SI2339BT
6 60 0.8 raw ISO 2339B THS
1647060070SD1BT
6 70 0.9 raw DIN 1B THS
1647060070SI2339BT
6 70 0.8 raw ISO 2339B THS
1647060080SD1BT
6 80 0.9 raw DIN 1B THS
1647060080SI2339BT
6 80 0.8 raw ISO 2339B THS
1647060090SD1BT
6 90 0.9 raw DIN 1B THS
1647060090SI2339BT
6 90 0.8 raw ISO 2339B THS
1647060100SD1BT
6 100 0.9 raw DIN 1B THS
1647060100SI2339BT
6 100 0.8 raw ISO 2339B THS
1647060110SI2339BT
6 110 0.8 raw ISO 2339B THS
1647060120SI2339BT
6 120 0.8 raw ISO 2339B THS
1647060130SI2339BT
6 130 0.8 raw ISO 2339B THS
1647065020SI2339BT
6.5 20 0.8 raw ISO 2339B THS
1647065022SI2339BT
6.5 22 0.8 raw ISO 2339B THS
1647065024SI2339BT
6.5 24 0.8 raw ISO 2339B THS
1647065026SI2339BT
6.5 26 0.8 raw ISO 2339B THS
1647065028SI2339BT
6.5 28 0.8 raw ISO 2339B THS
1647065030SI2339BT
6.5 30 0.8 raw ISO 2339B THS
1647065032SI2339BT
6.5 32 0.8 raw ISO 2339B THS
1647065036SI2339BT
6.5 36 0.8 raw ISO 2339B THS
1647065040SI2339BT
6.5 40 0.8 raw ISO 2339B THS
1647065045SI2339BT
6.5 45 0.8 raw ISO 2339B THS
1647065050SI2339BT
6.5 50 0.8 raw ISO 2339B THS
1647065055SI2339BT
6.5 55 0.8 raw ISO 2339B THS
1647065060SI2339BT
6.5 60 0.8 raw ISO 2339B THS
1647065070SI2339BT
6.5 70 0.8 raw ISO 2339B THS
1647065080SI2339BT
6.5 80 0.8 raw ISO 2339B THS
1647065090SI2339BT
6.5 90 0.8 raw ISO 2339B THS
1647065100SI2339BT
6.5 100 0.8 raw ISO 2339B THS
1647065110SI2339BT
6.5 110 0.8 raw ISO 2339B THS
1647065120SI2339BT
6.5 120 0.8 raw ISO 2339B THS
1647065130SI2339BT
6.5 130 0.8 raw ISO 2339B THS
1647070024SI2339BT
7 24 0.9 raw ISO 2339B THS
1647070026SI2339BT
7 26 0.9 raw ISO 2339B THS
1647070028SI2339BT
7 28 0.9 raw ISO 2339B THS
1647070030SI2339BT
7 30 0.9 raw ISO 2339B THS
1647070032SI2339BT
7 32 0.9 raw ISO 2339B THS
1647070036SI2339BT
7 36 0.9 raw ISO 2339B THS
1647070040SI2339BT
7 40 0.9 raw ISO 2339B THS
1647070045SI2339BT
7 45 0.9 raw ISO 2339B THS
1647070050SI2339BT
7 50 0.9 raw ISO 2339B THS
1647070055SI2339BT
7 55 0.9 raw ISO 2339B THS
1647070060SI2339BT
7 60 0.9 raw ISO 2339B THS
1647070070SI2339BT
7 70 0.9 raw ISO 2339B THS
1647070080SI2339BT
7 80 0.9 raw ISO 2339B THS
1647070090SI2339BT
7 90 0.9 raw ISO 2339B THS
1647070100SI2339BT
7 100 0.9 raw ISO 2339B THS
1647070110SI2339BT
7 110 0.9 raw ISO 2339B THS
1647070120SI2339BT
7 120 0.9 raw ISO 2339B THS
1647070130SI2339BT
7 130 0.9 raw ISO 2339B THS
1647070140SI2339BT
7 140 0.9 raw ISO 2339B THS
1647070150SI2339BT
7 150 0.9 raw ISO 2339B THS
1647080024SI2339BT
8 24 1 raw ISO 2339B THS
1647080026SI2339BT
8 26 1 raw ISO 2339B THS
1647080028SI2339BT
8 28 1 raw ISO 2339B THS
1647080030SD1BT
8 30 1.2 raw DIN 1B THS
1647080030SI2339BT
8 30 1 raw ISO 2339B THS
1647080032SI2339BT
8 32 1 raw ISO 2339B THS
1647080036SI2339BT
8 36 1 raw ISO 2339B THS
1647080040SD1BT
8 40 1.2 raw DIN 1B THS
1647080040SI2339BT
8 40 1 raw ISO 2339B THS
1647080045SD1BT
8 45 1.2 raw DIN 1B THS
1647080045SI2339BT
8 45 1 raw ISO 2339B THS
1647080050SD1BT
8 50 1.2 raw DIN 1B THS
1647080050SI2339BT
8 50 1 raw ISO 2339B THS
1647080055SI2339BT
8 55 1 raw ISO 2339B THS
1647080060SD1BT
8 60 1.2 raw DIN 1B THS
1647080060SI2339BT
8 60 1 raw ISO 2339B THS
1647080070SD1BT
8 70 1.2 raw DIN 1B THS
1647080070SI2339BT
8 70 1 raw ISO 2339B THS
1647080080SD1BT
8 80 1.2 raw DIN 1B THS
1647080080SI2339BT
8 80 1 raw ISO 2339B THS
1647080090SD1BT
8 90 1.2 raw DIN 1B THS
1647080090SI2339BT
8 90 1 raw ISO 2339B THS
1647080100SD1BT
8 100 1.2 raw DIN 1B THS
1647080100SI2339BT
8 100 1 raw ISO 2339B THS
1647080110SD1BT
8 110 1.2 raw DIN 1B THS
1647080110SI2339BT
8 110 1 raw ISO 2339B THS
1647080120SD1BT
8 120 1.2 raw DIN 1B THS
1647080120SI2339BT
8 120 1 raw ISO 2339B THS
1647080130SI2339BT
8 130 1 raw ISO 2339B THS
1647080140SI2339BT
8 140 1 raw ISO 2339B THS
1647080150SI2339BT
8 150 1 raw ISO 2339B THS
1647100028SI2339BT
10 28 1.2 raw ISO 2339B THS
1647100030SI2339BT
10 30 1.2 raw ISO 2339B THS
1647100032SI2339BT
10 32 1.2 raw ISO 2339B THS
1647100036SI2339BT
10 36 1.2 raw ISO 2339B THS
1647100040SD1BT
10 40 1.4 raw DIN 1B THS
1647100040SI2339BT
10 40 1.2 raw ISO 2339B THS
1647100045SD1BT
10 45 1.4 raw DIN 1B THS
1647100045SI2339BT
10 45 1.2 raw ISO 2339B THS
1647100050SD1BT
10 50 1.4 raw DIN 1B THS
1647100050SI2339BT
10 50 1.2 raw ISO 2339B THS
1647100055SI2339BT
10 55 1.2 raw ISO 2339B THS
1647100060SD1BT
10 60 1.4 raw DIN 1B THS
1647100060SI2339BT
10 60 1.2 raw ISO 2339B THS
1647100065SI2339BT
10 65 1.2 raw ISO 2339B THS
1647100070SD1BT
10 70 1.4 raw DIN 1B THS
1647100070SI2339BT
10 70 1.2 raw ISO 2339B THS
1647100080SD1BT
10 80 1.4 raw DIN 1B THS
1647100080SI2339BT
10 80 1.2 raw ISO 2339B THS
1647100090SD1BT
10 90 1.4 raw DIN 1B THS
1647100090SI2339BT
10 90 1.2 raw ISO 2339B THS
1647100100SD1BT
10 100 1.4 raw DIN 1B THS
1647100100SI2339BT
10 100 1.2 raw ISO 2339B THS
1647100110SD1BT
10 110 1.4 raw DIN 1B THS
1647100110SI2339BT
10 110 1.2 raw ISO 2339B THS
1647100120SD1BT
10 120 1.4 raw DIN 1B THS
1647100120SI2339BT
10 120 1.2 raw ISO 2339B THS
1647100130SI2339BT
10 130 1.2 raw ISO 2339B THS
1647100140SI2339BT
10 140 1.2 raw ISO 2339B THS
1647100150SI2339BT
10 150 1.2 raw ISO 2339B THS
1647120030SI2339BT
12 30 1.6 raw ISO 2339B THS
1647120032SI2339BT
12 32 1.6 raw ISO 2339B THS
1647120036SI2339BT
12 36 1.6 raw ISO 2339B THS
1647120040SI2339BT
12 40 1.6 raw ISO 2339B THS
1647120045SI2339BT
12 45 1.6 raw ISO 2339B THS
1647120050SI2339BT
12 50 1.6 raw ISO 2339B THS
1647120055SI2339BT
12 55 1.6 raw ISO 2339B THS
1647120060SD1BT
12 60 1.6 raw DIN 1B THS
1647120060SI2339BT
12 60 1.6 raw ISO 2339B THS
1647120070SD1BT
12 70 1.6 raw DIN 1B THS
1647120070SI2339BT
12 70 1.6 raw ISO 2339B THS
1647120080SD1BT
12 80 1.6 raw DIN 1B THS
1647120080SI2339BT
12 80 1.6 raw ISO 2339B THS
1647120090SI2339BT
12 90 1.6 raw ISO 2339B THS
1647120100SD1BT
12 100 1.6 raw DIN 1B THS
1647120100SI2339BT
12 100 1.6 raw ISO 2339B THS
1647120110SD1BT
12 110 1.6 raw DIN 1B THS
1647120110SI2339BT
12 110 1.6 raw ISO 2339B THS
1647120120SD1BT
12 120 1.6 raw DIN 1B THS
1647120120SI2339BT
12 120 1.6 raw ISO 2339B THS
1647120130SI2339BT
12 130 1.6 raw ISO 2339B THS
1647120140SI2339BT
12 140 1.6 raw ISO 2339B THS
1647120150SI2339BT
12 150 1.6 raw ISO 2339B THS
1647130030SI2339BT
13 30 1.7 raw ISO 2339B THS
1647130032SI2339BT
13 32 1.7 raw ISO 2339B THS
1647130036SI2339BT
13 36 1.7 raw ISO 2339B THS
1647130040SI2339BT
13 40 1.7 raw ISO 2339B THS
1647130045SI2339BT
13 45 1.7 raw ISO 2339B THS
1647130050SI2339BT
13 50 1.7 raw ISO 2339B THS
1647130055SI2339BT
13 55 1.7 raw ISO 2339B THS
1647130060SI2339BT
13 60 1.7 raw ISO 2339B THS
1647130070SI2339BT
13 70 1.7 raw ISO 2339B THS
1647130080SI2339BT
13 80 1.7 raw ISO 2339B THS
1647130090SI2339BT
13 90 1.7 raw ISO 2339B THS
1647130100SI2339BT
13 100 1.7 raw ISO 2339B THS
1647130110SI2339BT
13 110 1.7 raw ISO 2339B THS
1647130120SI2339BT
13 120 1.7 raw ISO 2339B THS
1647130130SI2339BT
13 130 1.7 raw ISO 2339B THS
1647130140SI2339BT
13 140 1.7 raw ISO 2339B THS
1647130150SI2339BT
13 150 1.7 raw ISO 2339B THS
1647140040SI2339BT
14 40 1.8 raw ISO 2339B THS
1647140045SI2339BT
14 45 1.8 raw ISO 2339B THS
1647140050SI2339BT
14 50 1.8 raw ISO 2339B THS
1647140055SI2339BT
14 55 1.8 raw ISO 2339B THS
1647140060SI2339BT
14 60 1.8 raw ISO 2339B THS
1647140070SI2339BT
14 70 1.8 raw ISO 2339B THS
1647140080SI2339BT
14 80 1.8 raw ISO 2339B THS
1647140090SI2339BT
14 90 1.8 raw ISO 2339B THS
1647140100SI2339BT
14 100 1.8 raw ISO 2339B THS
1647140110SI2339BT
14 110 1.8 raw ISO 2339B THS
1647140120SI2339BT
14 120 1.8 raw ISO 2339B THS
1647140130SI2339BT
14 130 1.8 raw ISO 2339B THS
1647140140SI2339BT
14 140 1.8 raw ISO 2339B THS
1647140150SI2339BT
14 150 1.8 raw ISO 2339B THS
1647160040SI2339BT
16 40 2 raw ISO 2339B THS
1647160045SI2339BT
16 45 2 raw ISO 2339B THS
1647160050SI2339BT
16 50 2 raw ISO 2339B THS
1647160055SI2339BT
16 55 2 raw ISO 2339B THS
1647160060SI2339BT
16 60 2 raw ISO 2339B THS
1647160070SI2339BT
16 70 2 raw ISO 2339B THS
1647160080SI2339BT
16 80 2 raw ISO 2339B THS
1647160090SI2339BT
16 90 2 raw ISO 2339B THS
1647160100SI2339BT
16 100 2 raw ISO 2339B THS
1647160110SI2339BT
16 110 2 raw ISO 2339B THS
1647160120SI2339BT
16 120 2 raw ISO 2339B THS
1647160130SI2339BT
16 130 2 raw ISO 2339B THS
1647160140SI2339BT
16 140 2 raw ISO 2339B THS
1647160150SI2339BT
16 150 2 raw ISO 2339B THS
1647160165SI2339BT
16 165 2 raw ISO 2339B THS
1647160180SI2339BT
16 180 2 raw ISO 2339B THS
1647200050SI2339BT
20 50 2.5 raw ISO 2339B THS
1647200055SI2339BT
20 55 2.5 raw ISO 2339B THS
1647200060SI2339BT
20 60 2.5 raw ISO 2339B THS
1647200070SI2339BT
20 70 2.5 raw ISO 2339B THS
1647200080SI2339BT
20 80 2.5 raw ISO 2339B THS
1647200090SI2339BT
20 90 2.5 raw ISO 2339B THS
1647200100SI2339BT
20 100 2.5 raw ISO 2339B THS
1647200110SI2339BT
20 110 2.5 raw ISO 2339B THS
1647200120SI2339BT
20 120 2.5 raw ISO 2339B THS
1647200130SI2339BT
20 130 2.5 raw ISO 2339B THS
1647200140SI2339BT
20 140 2.5 raw ISO 2339B THS
1647200150SI2339BT
20 150 2.5 raw ISO 2339B THS
1647200165SI2339BT
20 165 2.5 raw ISO 2339B THS
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
