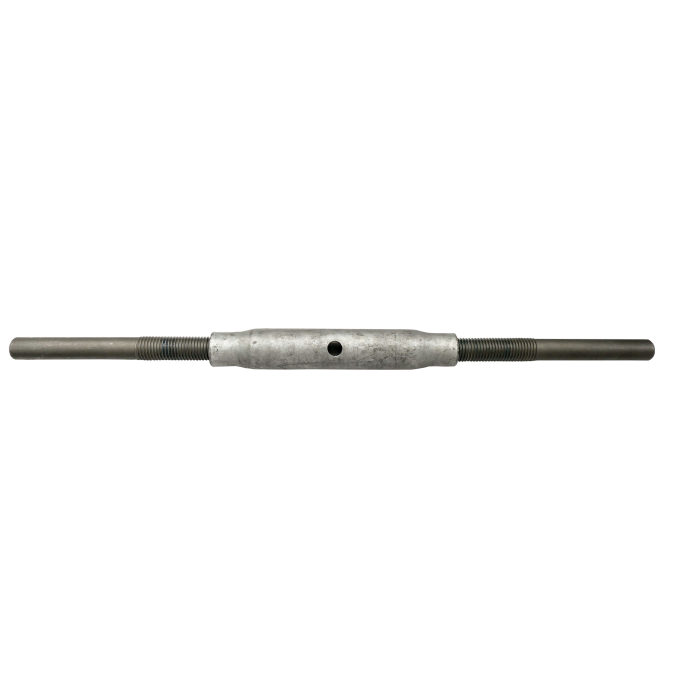

Tension nut with rods

63
.
70
NN235-PP

Tubular Tensioning Nut with Rods is a high-quality component designed for precise tensioning of tubular structures with rods. It is a key element in constructions that require secure and controlled tension, such as fencing systems, railings, and steel structures.

Applications:

Tubular tensioning nuts with dual ends are intended for creating tensioning systems in steel and wooden construction elements in industrial construction, warehouses, and public buildings, serving as tensioning components for load-bearing wall and roof structures.

  • Construction: Used in steel structures, railings, fences, and tensioning systems.
  • Urban Infrastructure: Suitable for use in urban installations, such as bridge railings or architectural elements.
  • Horticulture: Employed in the construction of fences, pergolas, or other garden structures.
  • Marine Industry: Corrosion resistance makes the nut suitable for applications in marine environments.

Benefits:

  • Precise Adjustment: The tension adjustment mechanism allows for accurate tuning of the rod tension to meet construction requirements.
  • Weather Resistance: Corrosion-resistant, ensuring durability and suitability for outdoor applications.
  • Versatility: Suitable for various applications in construction, horticulture, and the marine industry.
  • Safe Installation: Robust design and ease of installation guarantee the safe use of the product.

Recommended

Group
6370

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

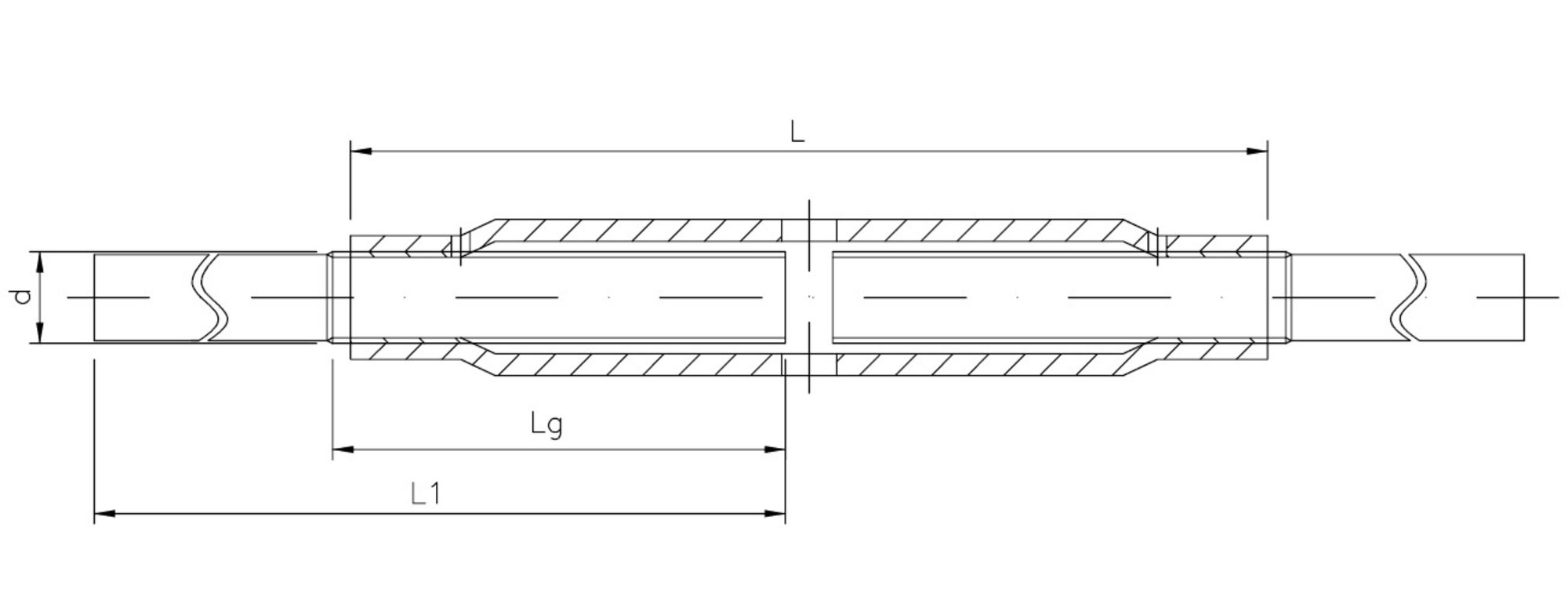

Dimension d [mm]
Dimension L [mm]
Tensile load capacity [kN]
Dimension L1 [mm]
Dimension Lg [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Tensile load capacity [kN] Dimension L1 [mm] Dimension Lg [mm] Unit of measure Availability Show More
6370100125BATS
M10 123 35.0 149 60 PCS
6370120125BATS
M12 125 51.0 150 75 PCS
6370160170BATS
M16 168 93.0 200 98 PCS
6370200200BATS
M20 200 140.0 230 120 PCS
6370220220BATS
M22 216 166.0 218 125 PCS
6370240255BATS
M24 255 186.0 260 146 PCS
6370270255BATS
M27 255 260.0 260 155 PCS
6370360290BATS
M36 310 380.0 300 175 PCS
