Thimble INOX

I63

View in store

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Variety/type

Dimension L [mm]

Material

Dimension A [mm]

Dimension C [mm]

Dimension s [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

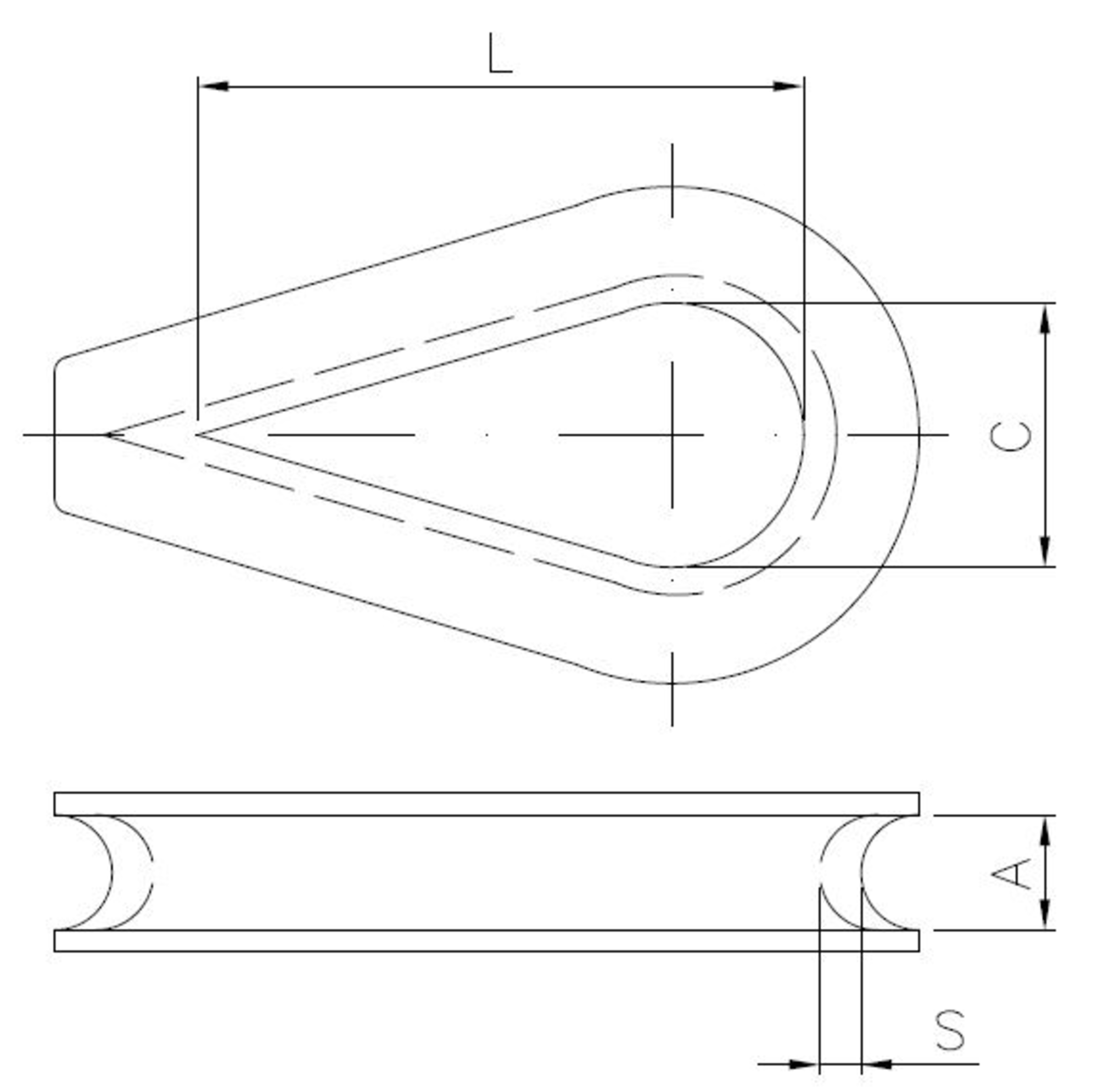

Material index More attributes	Variety/type	Dimension L [mm]	Material	Dimension A [mm]	Dimension C [mm]	Dimension s [mm]	Unit of measure	Availability

I6325002A46899S		10	A4	2	7	0.7	PCS	The product is available
I6325003A46899S	3	15	A4	3	9	1.7	PCS	The product is available
I6325004A46899S	4	18	A4	4	11	1.7	PCS	The product is available
I6325005A46899S	5	20	A4	5	14	1.7	PCS	The product is available
I6325006A46899S	6	23	A4	6	16	2.0	PCS	The product is available
I6325007A46899S	7						PCS	Product on request
I6325008A46899S	8	29	A4	8	18	2.0	PCS	The product is available
I6325010A46899S	10	37	A4	10	24	2.0	PCS	Product on request
I6325012A46899S	12	50	A4	12	29	3.0	PCS	Product on request
I6325014A46899S	14						PCS	Product on request
I6325016A46899S	16		A4	14			PCS	Product on request
I6325035A46899S							PCS	Product on request
