Thimble

63
.
25

The thimble is a loop or ring-shaped piece of equipment used in various fields where secure and effective connections of ropes, cables, or straps are essential. Its design allows for efficient force distribution, making it indispensable in situations that require reliable fastening.

Applications:

  • Climbing: Thimbles are used in climbing sports as connecting elements for different parts of equipment.
  • Marine Industry: Utilized on boats and yachts for securing ropes, sails, and other components.
  • Construction Industry: Thimbles are employed in steel, wood, or concrete constructions to effectively connect structural elements.
  • Rescue Operations: In rescue systems, thimbles serve as connecting and force-dispersing elements.

Benefits:

  • Versatility: Thimbles are universal and can be used in various fields and applications.
  • Durability: Sturdy materials ensure a long product lifespan.
  • Effective Force Transfer: The design of the thimble enables efficient force transfer, enhancing the safety and durability of connections.
  • Ease of Use: Thimbles are easy to install and operate.
DOWNLOADABLE DOCUMENTS

Recommended

Group
6325

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Type
Dimension L [mm]
Dimension A [mm]
Dimension C [mm]
Dimension s [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

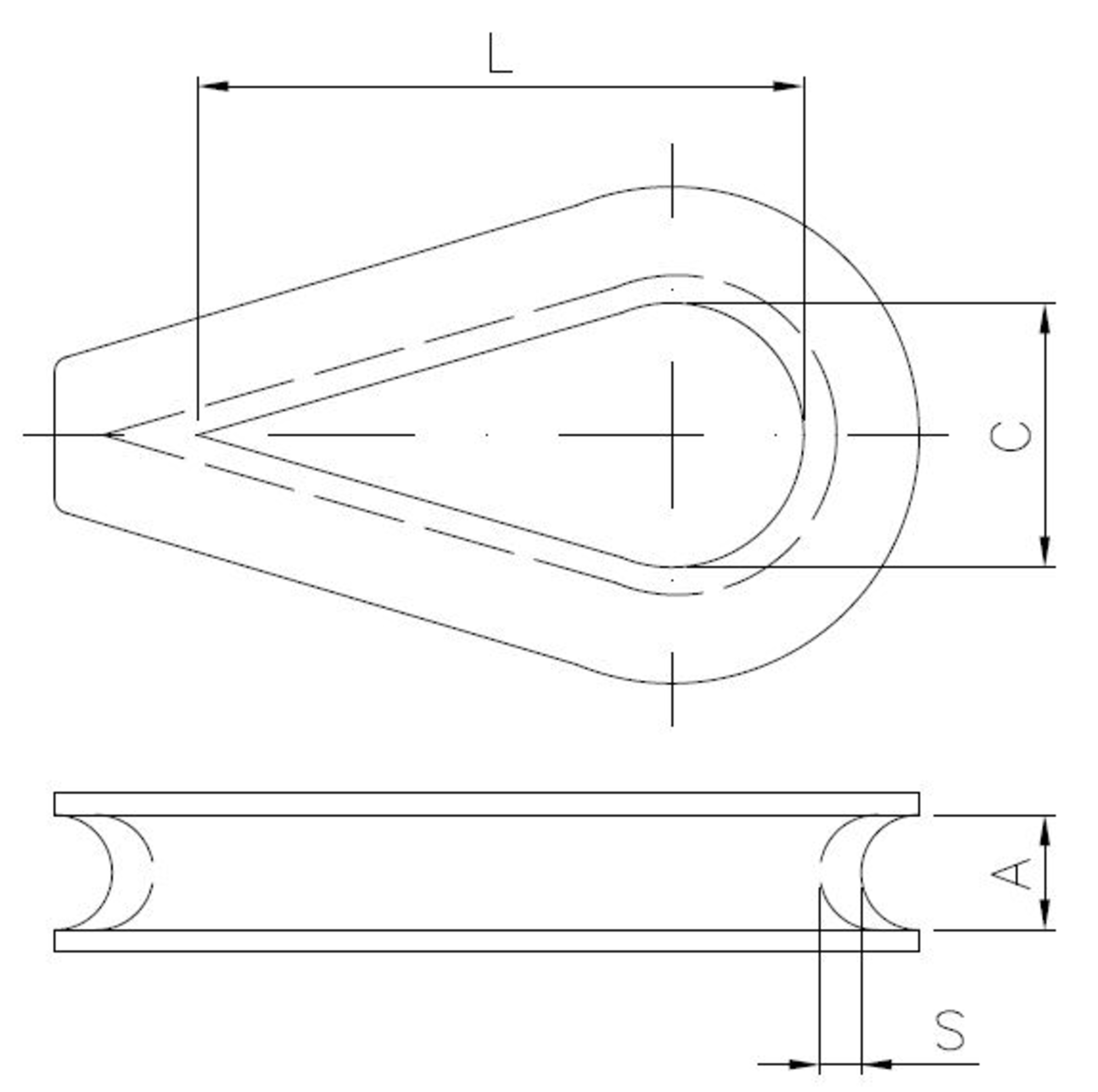

Type Dimension L [mm] Dimension A [mm] Dimension C [mm] Dimension s [mm] Unit of measure Availability Show More
6325003S
3 19.0 3.7 12.5 1.2 PCS
6325004S
4 20.0 4.8 13.3 1.2 PCS
6325005S
5 23.0 6.0 14.5 1.7 PCS
6325006S
6 24.5 7.5 16.0 2.2 PCS
6325007S
7 28.0 8.5 18.0 2.2 PCS
6325008S
8 31.5 9.5 20.5 2.7 PCS
6325010S
10 38.0 11.0 25.0 2.9 PCS
6325012S
12 44.5 13.0 28.0 3.2 PCS
6325014S
14 52.0 16.0 31.5 3.5 PCS
6325016S
16 59.0 18.5 35.5 3.8 PCS
6325018S
18 63.5 21.0 40.5 4.2 PCS
6325020S
20 72.5 23.5 44.5 5.2 PCS
6325022S
22 80.0 27.0 50.0 5.2 PCS
6325024S
24 90.0 30.0 56.0 6.2 PCS
6325028S
28 112.0 35.0 70.0 7.3 PCS
6325032S
32 PCS
6325034S
34 152.0 41.0 95.0 8.0 PCS
6325003MRPS
PCS
6325004MRPS
PCS
6325005MRPS
PCS
6325006MRPS
PCS
6325008MRPS
PCS
6325010MRPS
PCS
6325012MRPS
PCS
