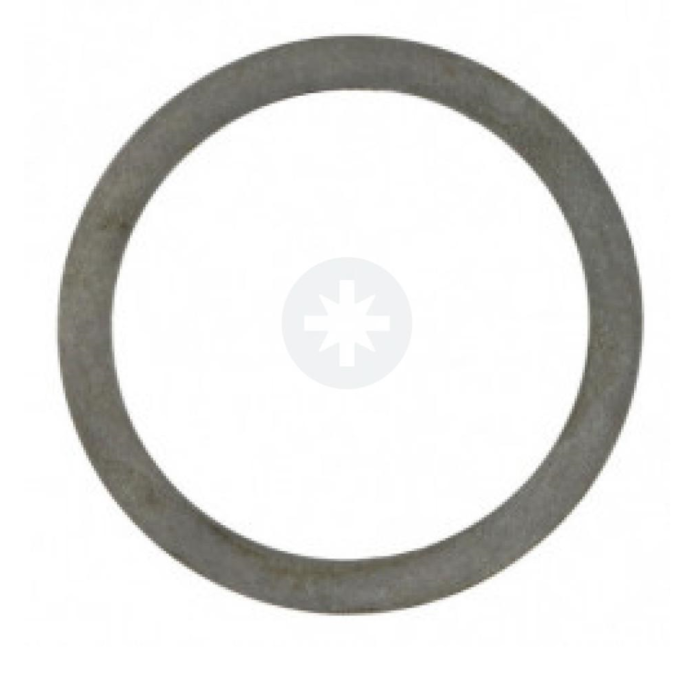

Thrust washer

14
.
22

Thrust washer is a mounting element used in various construction applications to ensure even load distribution and maintain the appropriate distance between components. Its shape and design allow for stable and precise installation, contributing to the durability and strength of the structure.

Applications

The round spacer washer is utilized in many fields of industry and construction, such as:

  • Construction Industry: For mounting steel and wooden structures, finishing elements, etc.

  • Automotive Industry: In the assembly of mechanical and structural components.

  • Electrical Industry: For mounting electrical and electronic components.

Benefits

  • Even Load Distribution: The round spacer washer enables even load distribution, contributing to the stability and durability of the connection.

  • Weather Resistance: Made from high-quality steel, the washer is resistant to corrosion and other external factors, ensuring long-lasting performance in various environmental conditions.

  • Versatility: It can be used in a variety of construction applications, making it a versatile mounting element.

Send product inquiry

Product inquiry form

Recommended

Group
1422

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

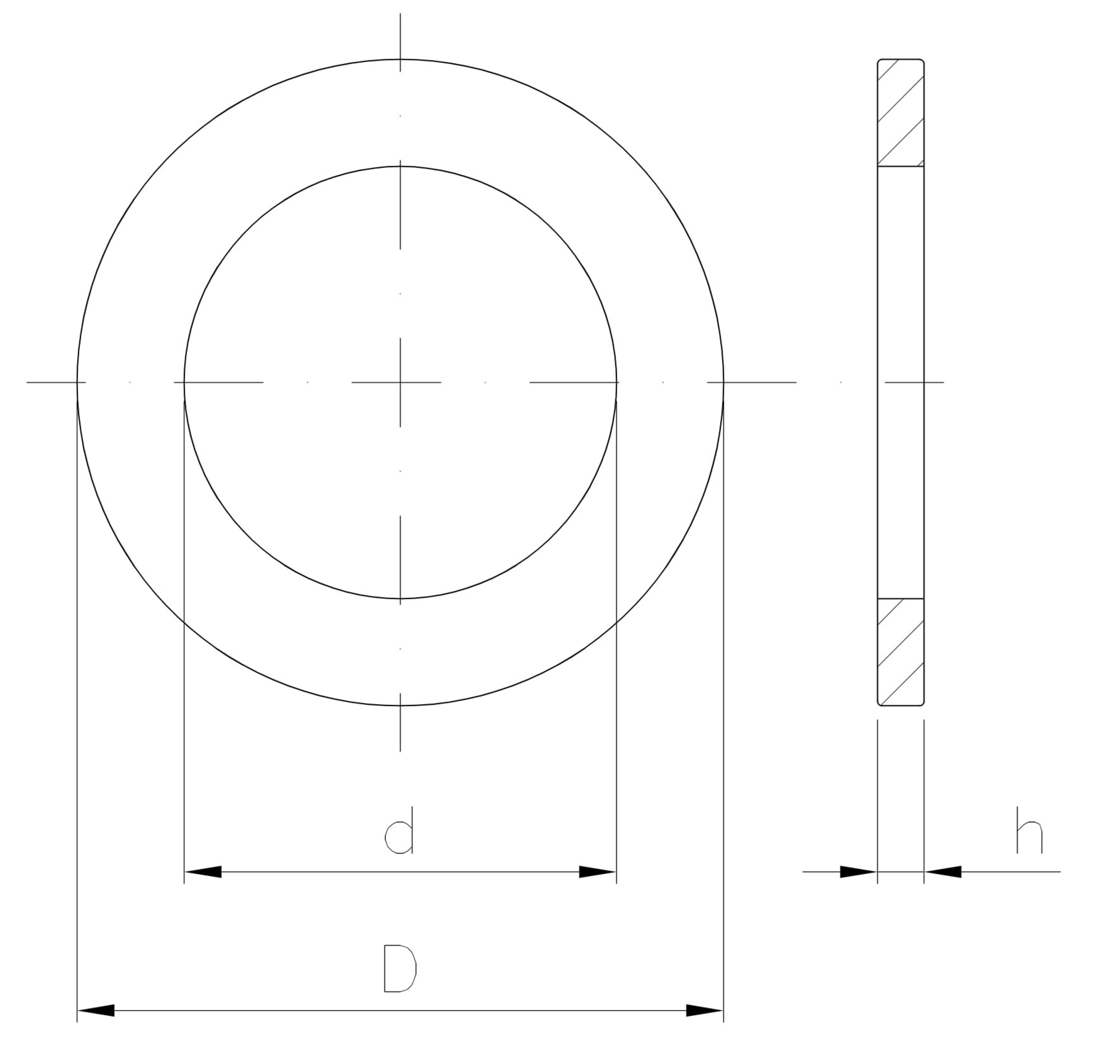

Hole diameter M [mm]
Outer diameter D [mm]
Inner diameter d [mm]
Thickness h [mm]
Variety of coating
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Hole diameter M [mm] Outer diameter D [mm] Inner diameter d [mm] Thickness h [mm] Variety of coating Standard Unit of measure Availability Show More
1422100120350S988T
M100 120 100 3.5 raw DIN 988 THS
1422160220150S988T
M16 22 16 1.5 raw DIN 988 THS
1422160220200S988T
M16 22 16 2 raw DIN 988 THS
1422170240150S988T
M17 24 17 1.5 raw DIN 988 THS
1422220320200S988T
M22 32 22 2 raw DIN 988 THS
1422250350200S988T
M25 35 25 2 raw DIN 988 THS
1422260370200S988T
M26 37 26 2 raw DIN 988 THS
1422280400200S988T
M28 40 28 2 raw DIN 988 THS
1422300420250S988T
M30 42 30 2.5 raw DIN 988 THS
1422350450250S988T
M35 45 35 2.5 raw DIN 988 THS
1422370470250S988T
M37 47 37 2.5 raw DIN 988 THS
1422400500250S988T
M40 50 40 2.5 raw DIN 988 THS
1422450550300S988T
M45 55 45 3 raw DIN 988 THS
1422500620300S988T
M50 62 50 3 raw DIN 988 THS
1422560720300S988T
M56 72 56 3 raw DIN 988 THS
1422630800300S988T
M63 80 63 3 raw DIN 988 THS
1422700900350S988T
M70 90 70 3.5 raw DIN 988 THS
1422800100350S988T
M80 100 80 3.5 raw DIN 988 THS
1422900110350S988T
M90 110 90 3.5 raw DIN 988 THS
