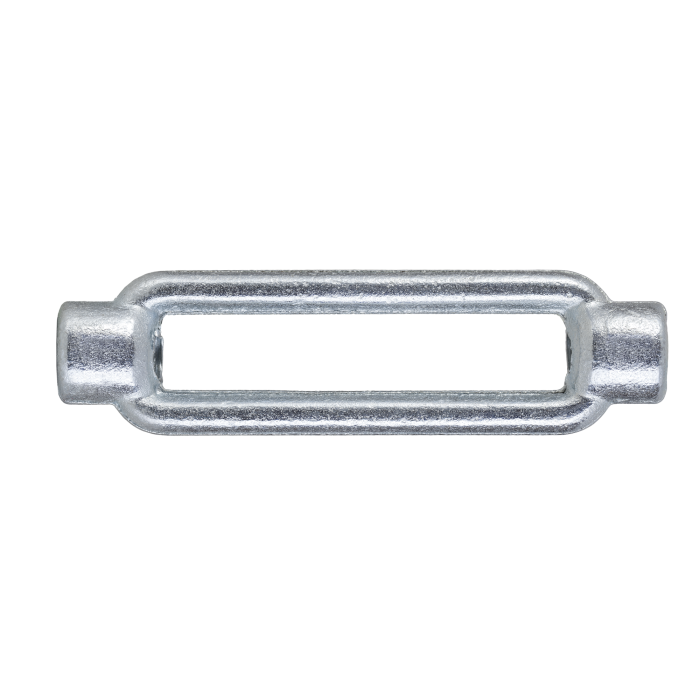

Turnbuckle body part

SRM

View in store

DOWNLOADABLE DOCUMENTS

Certificates

Declarations of conformity

KDWU 02.SRM.0215.2021.pdf

Deklaracje Krajowe

ITB-KOT-2017.0215 - Łączniki śrubowe dwustronne wyd.2.pdf

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Type

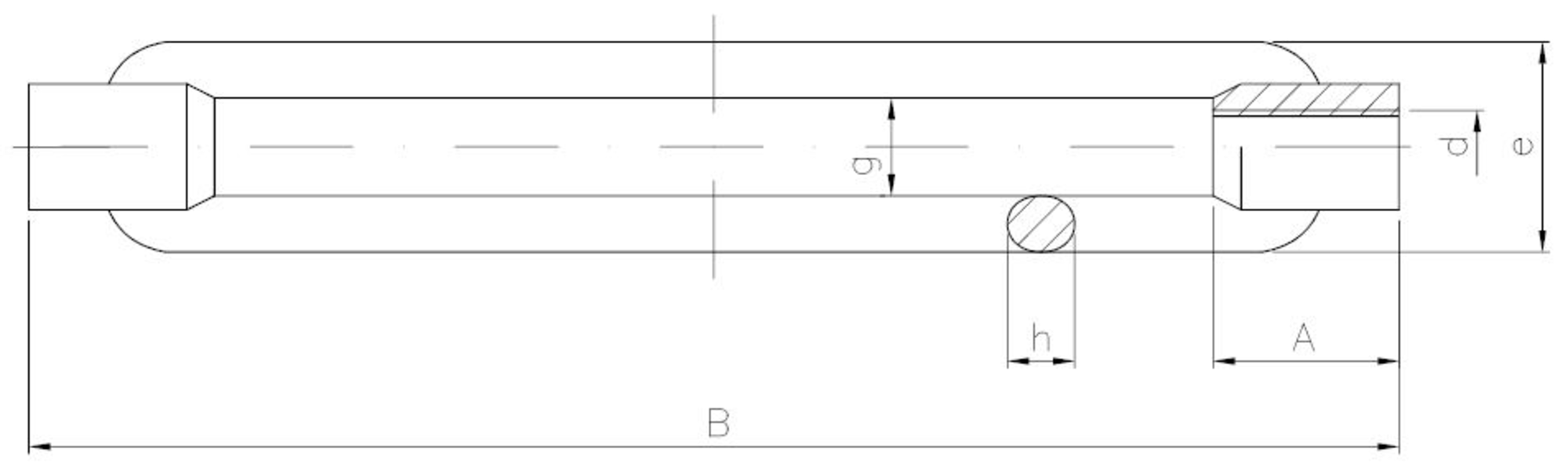

Dimension d [mm]

Dimension A [mm]

Dimension B [mm]

Dimension f [mm]

Acceptable load [kg]

Tensile load capacity [kN]

Dimension e [mm]

Dimension h [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Type	Dimension d [mm]	Dimension A [mm]	Dimension B [mm]	Dimension f [mm]	Acceptable load [kg]	Tensile load capacity [kN]	Dimension e [mm]	Dimension h [mm]	Unit of measure	Availability

6336060B1480ATS	M6x110	M6	12	110	9		13.52	19	6	PCS	The product is available
6336060B1480S	M6x110	M6	12	110	9		13.52	19	6	PCS	Product on request
6336080B1480ATS	M8x110	M8	15	110	11		20.62	23	8	PCS	The product is available
6336080B1480S	M8x110	M8	15	110	11	415	20.62	23	8	PCS	Product on request
6336100B1480ATS	M10x125	M10	18	125	14		31.84	29	9	PCS	The product is available
6336100B1480S	M10x125	M10	18	125	14	660	31.84	29	9	PCS	Product on request
6336120B1480ATS	M12x125	M12	21	125	16		44.96	34	11	PCS	The product is available
6336120B1480S	M12x125	M12	21	125	16	940	44.96	34	11	PCS	Product on request
6336120G1480S	M12x125	M12	21	125	16		44.96	34	11	PCS	Product on request
6336140B1480ATS	M14x140	M14	25	140	17		63.96	37	12	PCS	The product is available
6336160B1480ATS	M16x170	M16	27	170	20		85.37	42	14	PCS	The product is available
6336160B1480S	M16x170	M16	27	170	20	1800	85.37	42	14	PCS	Product on request
6336160G1480S	M16x170	M16	27	170	20	1800	85.37	42	14	PCS	Product on request
6336180B1480ATS	M18x196	M18	32	196	22		72.55	46	16	PCS	The product is available
6336200B1480ATS	M20x200	M20	34	200	24		132.33	52	17	PCS	The product is available
6336200B1480S	M20x200	M20	34	200	24	2750	132.33	52	17	PCS	Product on request
6336200G1480S	M20x200	M20	34	200	24	2750	132.33	52	17	PCS	Product on request
6336220B1480ATS	M22x220	M22	34.5	220	26		164.60	56	18	PCS	The product is available
6336240B1480ATS	M24x255	M24	39	255	28		165.42	60	20	PCS	The product is available
6336240B1480S	M24x255	M24	39	255	28	4000	165.42	60	20	PCS	Product on request
6336240G1480S	M24x255	M24	39	255	28		165.42	60	20	PCS	Product on request
6336300B1480ATS	M30x255	M30	42.5	255	34		273.35	74	23	PCS	The product is available
6336300B1480S	M30x255	M30	42.5	255	34	6350	273.35	74	23	PCS	Product on request
6336300G1480S	M30x255	M30	42.5	255	34		273.35	74	23	PCS	Product on request
6336360B1480ATS	M36x295	M36	53.5	295	40		300.74	86	28	PCS	The product is available
6336360B1480S	M36x295	M36	53.5	295	40		300.74	86	28	PCS	Product on request
6336420B1480S	M42	M42								PCS	Product on request
