Turnbuckle eye and eye INOX

I63

SRMI-OO

View in store

DOWNLOADABLE DOCUMENTS

Certificates

Declarations of conformity

Deklaracje Krajowe

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Dimension d [mm]

Dimension D [mm]

Dimension B [mm]

Material

Tensile load capacity [kN]

Dimension C [mm]

Dimension E [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

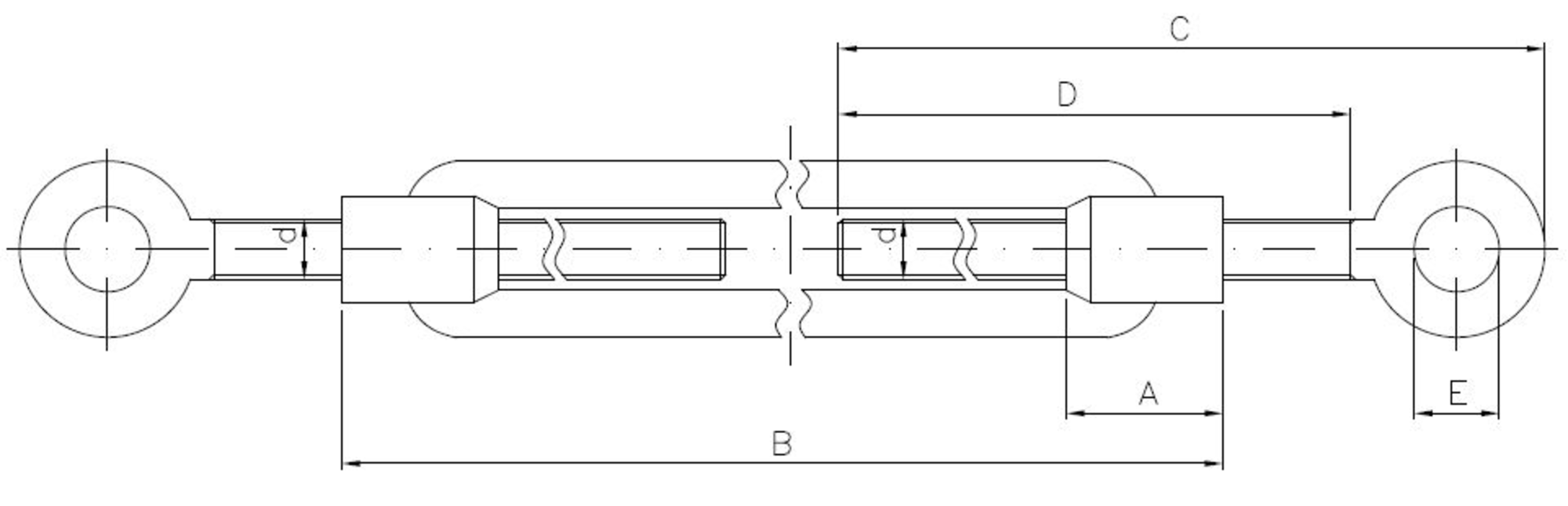

Material index More attributes	Dimension d [mm]	Dimension D [mm]	Dimension B [mm]	Material	Tensile load capacity [kN]	Dimension C [mm]	Dimension E [mm]	Unit of measure	Availability

I6309040058A4ATS	M4	30	58	A4	1.72	52	6	PCS	The product is available
I6309050070A4ATS	M5	32	70	A4	7.95	56	8	PCS	The product is available
I6309060100A4ATS	M6	42	90	A4	14.59	70	10	PCS	The product is available
I6309080120A4ATS	M8	58	120	A4	23.75	98	15	PCS	The product is available
I6309100150A4ATS	M10	71	150	A4	34.08	117	16	PCS	The product is available
I6309120200A4ATS	M12	94	200	A4	34.94	152	20	PCS	The product is available
I6309160250A4ATS	M16	115	250	A4	66.64	190	26	PCS	The product is available
I6309200300A4ATS	M20	140	300	A4	79.63	220	30	PCS	The product is available
