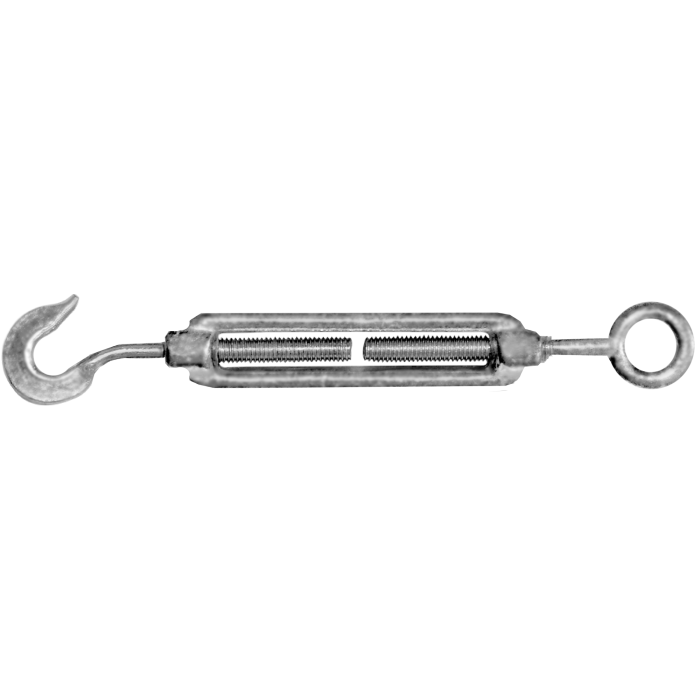

Turnbuckle eye and hook

63
.
08
SRM-HO

A turnbuckle with eye and hook is an advanced fastening and securing component used in various fields, including construction, industry, recreation, and more. This product combines the features of a screw with a "hook" type attachment, making it a versatile tool for connecting and securing elements.

Applications:

Turnbuckles are designed for creating tension in metal and wooden structural elements in residential, collective housing, public utility, industrial, and warehouse buildings, as well as for tensioning and adjusting guy lines.

  • Construction: Turnbuckle eyes and hooks are used in construction for securing various structural elements such as railings, steel cables, metal frameworks, and more.
  • Industry: In industrial applications, these products are used for assembling and securing machinery components and for organizing production space.
  • Recreation: Turnbuckle eye and hook components are utilized in recreational settings, such as in rope parks and climbing equipment.
  • Automotive: These products are employed in the automotive sector for securing racks and sporting equipment.
  • Other Uses: Turnbuckles can be applied in various fields, including general use, DIY projects, and many other applications.

Benefits:

  • Durability: The stainless steel construction ensures that the turnbuckles are exceptionally strong and resistant to damage.
  • Versatility: Turnbuckle eye and hook combinations merge the characteristics of a screw and a hook, making them a versatile tool for various applications.
  • Corrosion Resistance: The stainless material provides protection against corrosion, allowing for use in different weather conditions.
  • Precise Assembly: The design enables precise and secure installation of components.

Recommended

Group
6308

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

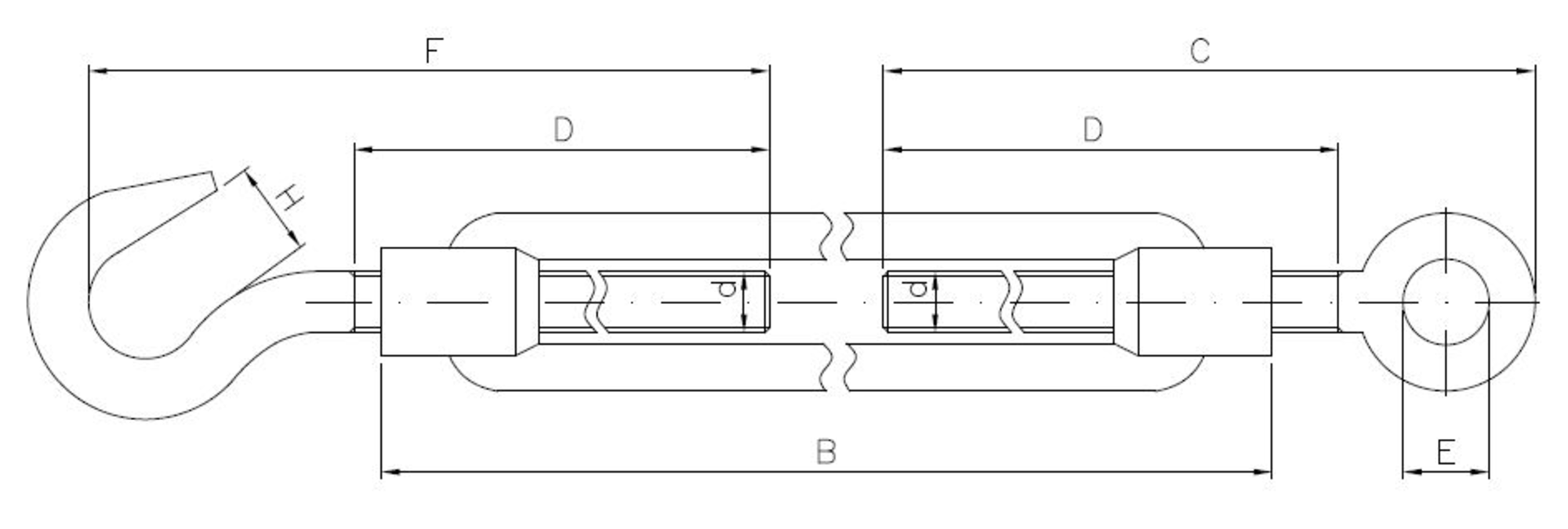

Type
Diameter d
Thread length D [mm]
Body length B [mm]
Tensile load capacity [kN]
Eye length C [mm]
Inner diameter of eye E [mm]
Hook length F [mm]
Hook inner diameter H [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Type Diameter d Thread length D [mm] Body length B [mm] Tensile load capacity [kN] Eye length C [mm] Inner diameter of eye E [mm] Hook length F [mm] Hook inner diameter H [mm] Unit of measure Availability Show More
6308050070ATS
M 5x70 M5 35 70 1.31 57 8 56 7 PCS
6308050070S
PCS
6308060110ATS
M 6x110 M6 55 110 2.54 80 9 77 8 PCS
6308060110S
PCS
6308080110ATS
M 8x110 M8 57 110 4.94 85 10 89 10.5 PCS
6308080110S
M 8x110 M8 57 110 4.94 85 10 89 10.5 PCS
6308100110S
PCS
6308100125ATS
M 10x125 M10 68 125 5.29 105 14 106 13 PCS
6308120110S
PCS
6308120125ATS
M 12x125 M12 70 125 8.29 111 16 117 16 PCS
6308140140ATS
M 14x140 M14 75 140 9.62 124 18 124 18 PCS
6308160170ATS
M 16x170 M16 88 170 17.22 150 22 144 20 PCS
6308160170S
PCS
6308180200ATS
M 18x200 M18 98 200 17.24 160 25 163 21 PCS
6308200200ATS
M 20x200 M20 105 200 26.29 168 25 170 21 PCS
6308200200S
M 20x200 M20 105 200 26.29 168 25 170 21 PCS
6308220220ATS
M 22x220 M22 118 220 28.62 190 28 200 24 PCS
6308240255ATS
M 24x255 M24 135 255 29.51 215 28 210 26 PCS
6308240255S
M 24x255 M24 135 255 29.51 215 28 210 26 PCS
6308300255ATS
M 30x255 M30 135 255 43.60 224 31 240 34 PCS
