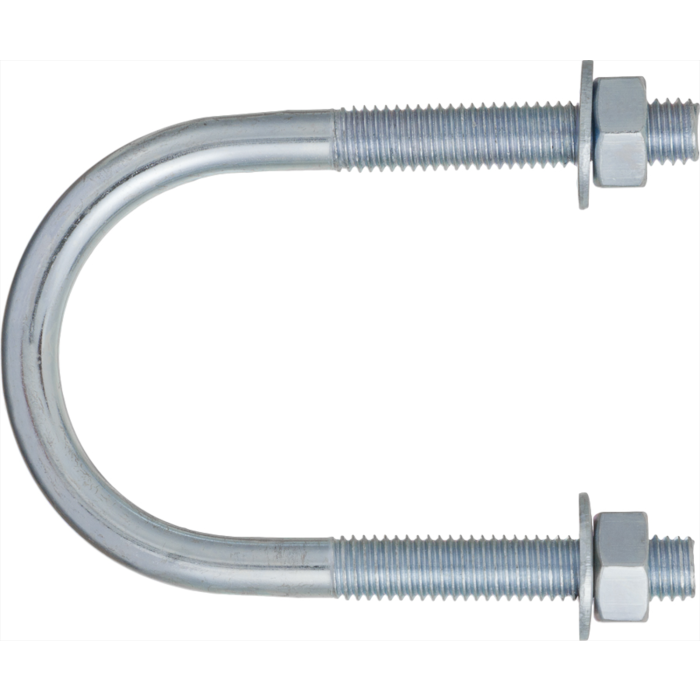

U-bolt, type B, oval

63
.
60

Type B Oval Clamp is a specialized fastening component used across various fields where secure and reliable attachment is essential. Its oval shape and bow construction make it easy to use while ensuring a sturdy hold.

Applications:

  • Construction Industry: Used for securing scaffolding elements, safety lines, and various tools.
  • Tourism Industry: Employed in climbing for attaching ropes and equipment in hard-to-reach areas.
  • Marine Industry: Utilized in sailing for securing ropes, rigging, and various deck elements.
  • Automotive Industry: Applied for fastening loads, racks, and other transport components.

Benefits:

  • Secure Fastening: The bow construction and oval shape provide a stable and reliable hold.
  • Versatility: Suitable for use across multiple industries, making it a highly adaptable tool.
  • Safety: The bow mechanism and optional additional locks prevent accidental opening.
  • Durability: Made from durable materials, ensuring long-lasting performance.

Recommended

Group
6360

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

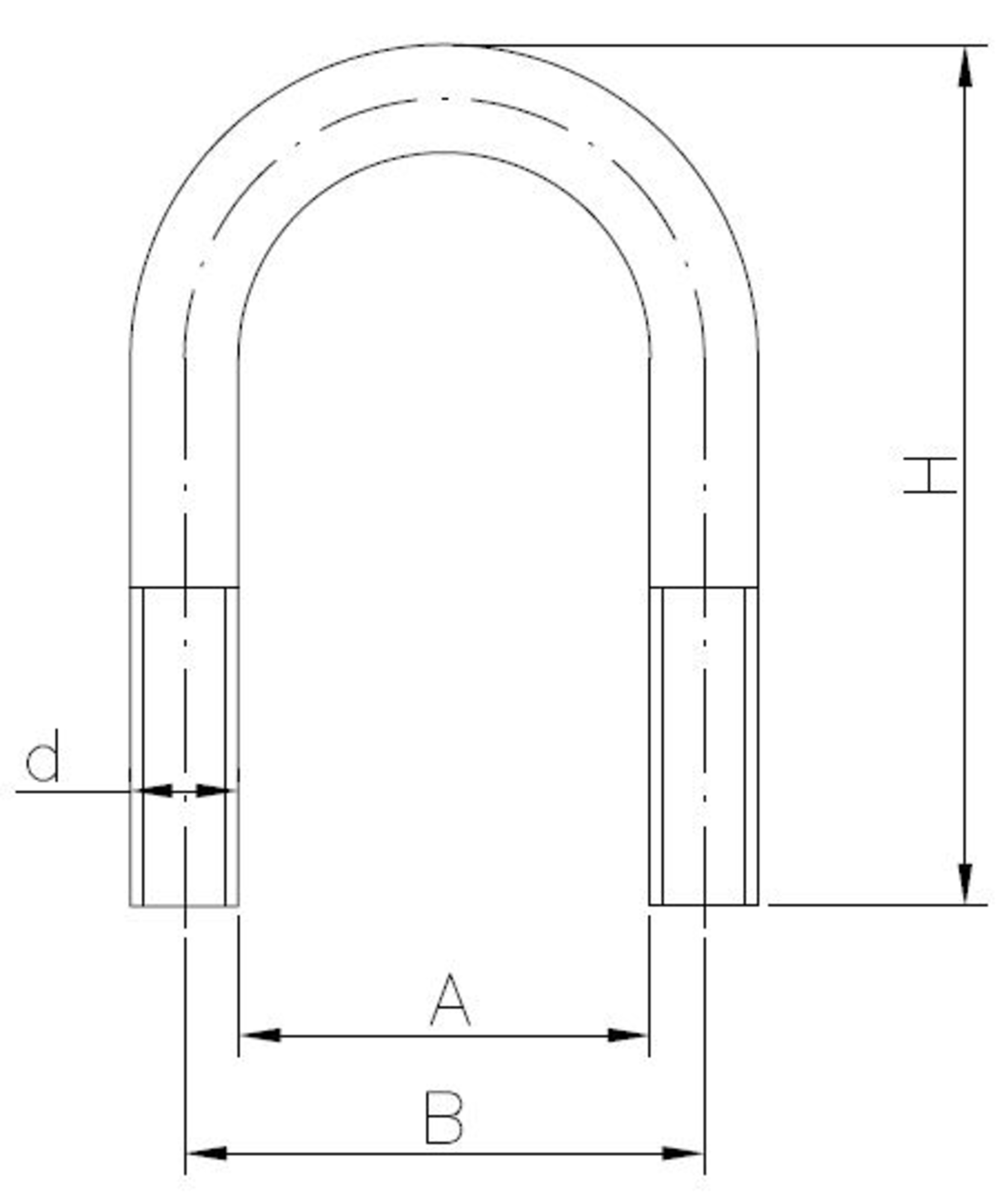

Dimension d [mm]
Dimension A [mm]
Dimension B [mm]
Variety/type
Dimension H [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension A [mm] Dimension B [mm] Variety/type Dimension H [mm] Unit of measure Availability Show More
636006011029BS
M6 11 17 1/8" 29 PCS
636006014032BS
M6 14 32 1/4" 32 PCS
636006018037BS
M6 18 24 3/8" 37 PCS
636006023040BS
M6 23 29 1/2" 40 PCS
636006028055BS
M6 28 34 3/4" 55 PCS
636006035065BS
M6 35 41 1" 65 PCS
636006043082BS
M6 43 49 1 1/4" 82 PCS
636006049090BS
M6 49 55 1 1/2" 90 PCS
636008023042BS
M8 23 31 1/2" 42 PCS
636008028058BS
M8 28 36 3/4" 58 PCS
636008035068BS
M8 35 43 1" 68 PCS
636008043081BS
M8 43 51 1 1/4" 81 PCS
636008049090BS
M8 49 57 1 1/2" 90 PCS
636008061110BS
M8 61 69 2" 110 PCS
636008077136BS
M8 77 85 2 1/2" 136 PCS
636008089141BS
M8 89 97 3" 141 PCS
636008115175BS
M8 115 123 4" 175 PCS
636010035071BS
M10 35 45 1" 71 PCS
636010043081BS
M10 43 53 1 1/4" 81 PCS
636010049092BS
M10 49 59 1 1/2" 92 PCS
636010061110BS
M10 61 71 2" 110 PCS
636010077138BS
M10 77 87 2 1/2" 138 PCS
636010089143BS
M10 89 99 3" 143 PCS
636010102163BS
M10 102 112 3 1/2" 163 PCS
636010115175BS
M10 115 125 4" 175 PCS
636012061110BS
M12 61 73 2" 110 PCS
636012077138BS
M12 77 89 2 1/2" 138 PCS
636012089143BS
M12 89 101 3" 143 PCS
636012102163BS
M12 102 3" 163 PCS
636012115175BS
M12 115 127 4" 175 PCS
