VBS repair anchor for Fischer sandwich walls

Repair anchor for multi-layer walls.

Advantages
The expansion-free fastening prevents the wall from splitting and cracking. This means that the VBS 8 connector can be used in old walls and other sensitive substrates.

The drill diameter is only 8 mm, which means that only a minimum amount of mortar is required for each fixing point, making anchoring cost-effective.

It can be installed anywhere in the horizontal joint, which ensures safe installation.

The grey colour of the injection mortar is similar to the colour of the joint, so the fixing points are almost invisible.

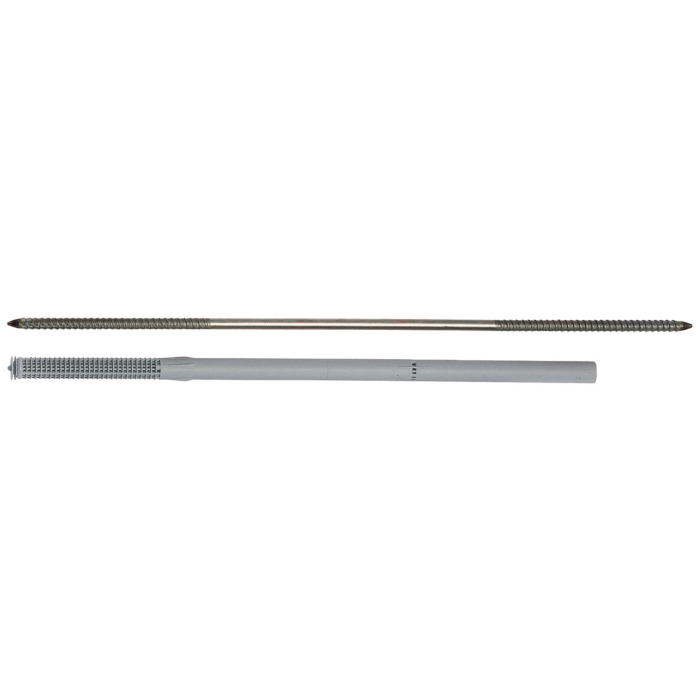

The fischer VBS 8 repair wall anchor is a system for repairing external wall layers with or without a cavity. The main components of the system are the fischer FIS V injection mortar, a plastic anchor sleeve and a stainless steel connector. The VBS 8 anchor is set in the joint of the external wall using the pre-installation method. The sleeve and connector are inserted through the hole without exerting a spreading force. Immediately after the mortar is injected, a 4 mm diameter connector is inserted into the hole, which joins the curtain wall to the load-bearing wall.
