Washer head machine screw, partially threaded

13
.
04
WPM

A metric screw with a washer head and partial thread is an advanced fastening component that combines the functionality of partial threading with the convenience of a washer head. The distinctive washer provides a larger contact area and additional support for the connection, which is particularly useful in applications requiring stability.

Applications:

The metric screw with a washer head and partial thread is ideal for applications where fastening with a larger contact area and additional support is required. It works excellently in construction, furniture assembly, and anywhere the stability of the connection is crucial.

Features and Benefits:

  • The distinctive washer provides a larger contact area and additional support for the connection.
  • Solid construction and high-quality material ensure reliability.
  • Available in various sizes and strength classes tailored to specific needs.
  • Excellent craftsmanship and durability.
  • Easy assembly with standard tools.




View in store

Recommended

Group
1304

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

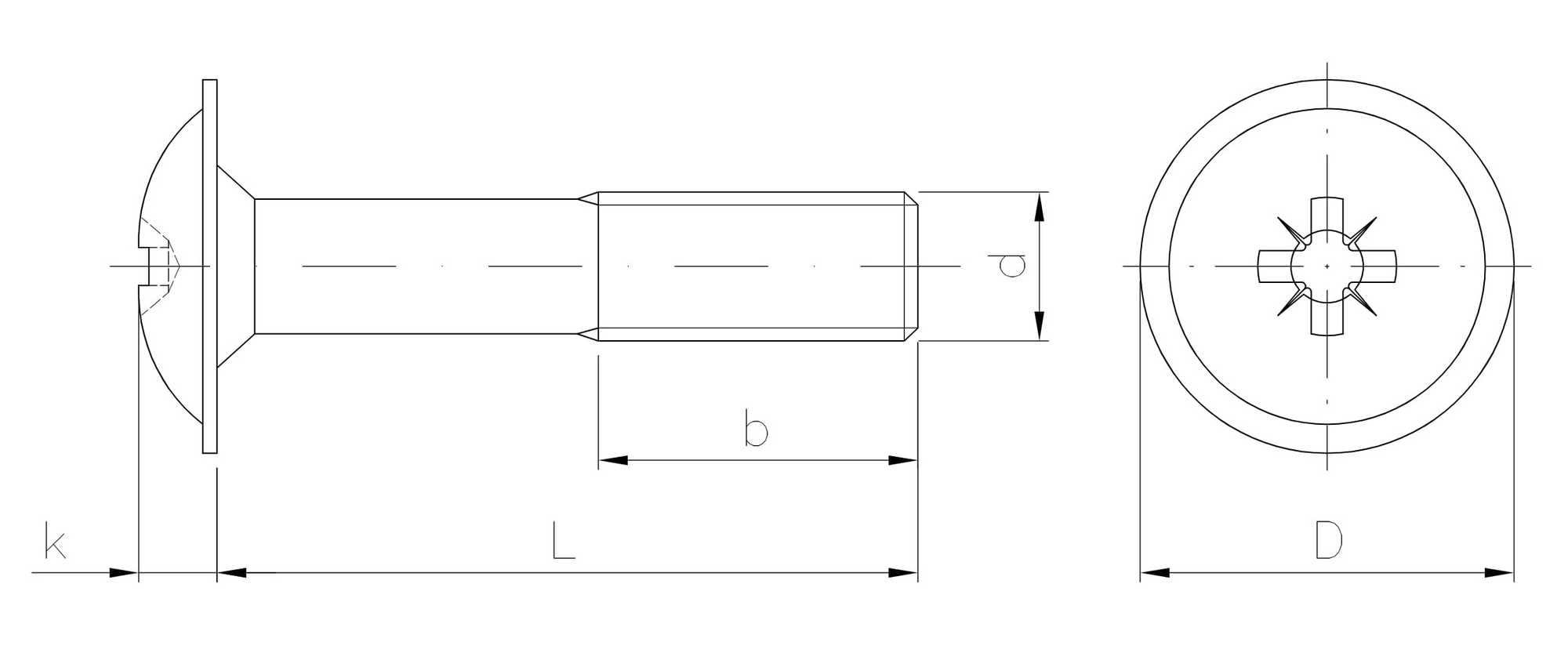

Dimension d [mm]
Dimension L [mm]
Dimension b [mm]
Class of mechanical properties
Variety of coating
Threading
Recess
Thread ending
Dimension D [mm]
Dimension k [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Dimension d [mm] Dimension L [mm] Dimension b [mm] Class of mechanical properties Variety of coating Threading Recess Thread ending Dimension D [mm] Dimension k [mm] Unit of measure Availability Show More
1304040045PKBK
M4 45 40 4.8 white zinc plating On a part PK Cut 10.0 2.5 KG
1304040045PKBT
M4 45 40 4.8 white zinc plating On a part PK Cut 10.0 2.5 THS
1304040050PKBK
M4 50 40 4.8 white zinc plating On a part PK Cut 10.0 2.5 KG
1304040050PKBT
M4 50 40 4.8 white zinc plating On a part PK Cut 10.0 2.5 THS
1304040060PKBK
M4 60 40 4.8 white zinc plating On a part PK Cut 10.0 2.5 KG
1304060050PKBT
M6 50 40 4.8 white zinc plating On a part PK Cut 14.0 3.4 THS
