Washer head screw with pilot for plastics

33
.
01

Plastic screws with washer head are fasteners specifically designed for securing components in plastic materials. Their washer head provides a larger surface area of contact, minimizing the risk of damaging delicate surfaces and enhancing connection stability. The screw’s design allows for easy insertion without the need for pre-drilling, simplifying the assembly process.

Applications:

  • Electronics: Ideal for assembling plastic housings, panels, and other electronic components.
  • Furniture: Used in plastic furniture where strong connections are needed without damaging the material.
  • Automotive: Applied in interior vehicle components made from plastic, providing stable and durable fastening.

Benefits:

  • Material protection: The washer head spreads the pressure over a larger area, reducing the risk of cracks or deformations.
  • Easy installation: The screw's design allows for direct insertion without pre-drilling.
  • Durability: High-quality construction ensures a reliable connection, even when used in softer materials.

Recommended

Group
3301

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Dimension d [mm]
Dimension L [mm]
Dimension D [mm]
Recess
Variety of coating
Dimension k [mm]
Thread ending
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes

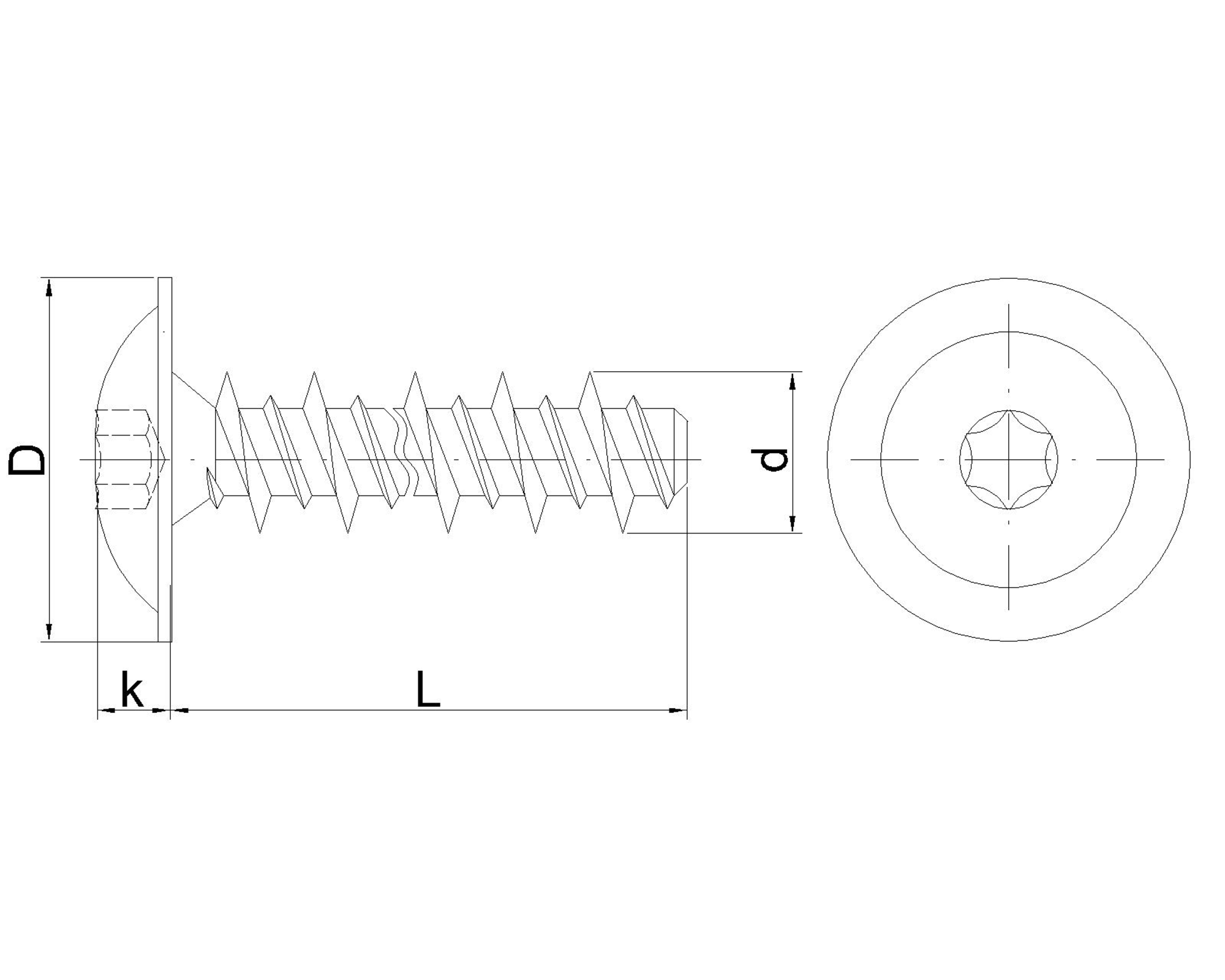

Dimension d [mm] Dimension L [mm] Dimension D [mm] Recess Variety of coating Dimension k [mm] Thread ending Unit of measure Availability Show More
3301030008TXBSAT
3.0 8 5.5 TX 10 white zinc plating 2.5 Cut THS
3301030010TXBSAT
3.0 10 5.5 TX 10 white zinc plating 2.5 Cut THS
3301030012TXBSAT
3.0 12 5.5 TX 10 white zinc plating 2.5 Cut THS
3301030014TXBSAT
3.0 14 5.5 TX 10 white zinc plating 2.5 Cut THS
3301030016TXBSAT
3.0 16 5.5 TX 10 white zinc plating 2.5 Cut THS
3301036012PHCST
3.6 12 8.0 PH 2 black zinc plating 2.5 Cut THS
3301040010TXBSAT
4.0 10 8.0 TX 20 white zinc plating 3.3 Cut THS
3301040012TXBSAT
4.0 12 8.0 TX 20 white zinc plating 3.3 Cut THS
3301040016TXBSAT
4.0 16 8.0 TX 20 white zinc plating 3.3 Cut THS
3301040020TXBSAT
4.0 20 8.0 TX 20 white zinc plating 3.3 Cut THS
3301040025TXBSAT
4.0 25 8.0 TX 20 white zinc plating 3.3 Cut THS
3301050010TXBSAT
5.0 10 11.5 TX 25 white zinc plating 4.4 Cut THS
3301050012TXBSAT
5.0 12 11.5 TX 25 white zinc plating 4.4 Cut THS
3301050014TXBSAT
5.0 14 11.5 TX 25 white zinc plating 4.4 Cut THS
3301050016TXBSAT
5.0 16 11.5 TX 25 white zinc plating 4.4 Cut THS
3301050020TXBSAT
5.0 20 11.5 TX 25 white zinc plating 4.4 Cut THS
3301050025TXBSAT
5.0 25 11.5 TX 25 white zinc plating 4.4 Cut THS
3301030008TXBVT
3.0 8 TX 10 white zinc plating With pilot THS
3301030010TXBVT
3.0 10 TX 10 white zinc plating With pilot THS
3301030012TXBVT
3.0 12 TX 10 white zinc plating With pilot THS
3301030014TXBVT
3.0 14 TX 10 white zinc plating With pilot THS
3301030016TXBVT
3.0 16 TX 10 white zinc plating With pilot THS
3301035010TXBVT
3.5 10 TX 15 white zinc plating With pilot THS
3301035012TXBVT
3.5 12 TX 15 white zinc plating With pilot THS
3301035016TXBVT
3.5 16 TX 15 white zinc plating With pilot THS
3301040010TXBVT
4.0 10 TX 20 white zinc plating With pilot THS
3301040012TXBVT
4.0 12 TX 20 white zinc plating With pilot THS
3301040016TXBVT
4.0 16 TX 20 white zinc plating With pilot THS
3301040020TXBVT
4.0 20 TX 20 white zinc plating With pilot THS
3301040025TXBVT
4.0 25 TX 20 white zinc plating With pilot THS
3301050010TXBVT
5.0 10 TX 25 white zinc plating With pilot THS
3301050012TXBVT
5.0 12 TX 25 white zinc plating With pilot THS
3301050014TXBVT
5.0 14 TX 25 white zinc plating With pilot THS
3301050016TXBVT
5.0 16 TX 25 white zinc plating With pilot THS
3301050020TXBVT
5.0 20 TX 25 white zinc plating With pilot THS
3301050025TXBVT
5.0 25 TX 25 white zinc plating With pilot THS
3301060014TXBVT
6.0 14 TX 30 white zinc plating With pilot THS
3301060016TXBVT
6.0 16 TX 30 white zinc plating With pilot THS
3301060020TXBVT
6.0 20 TX 30 white zinc plating With pilot THS
3301060025TXBVT
6.0 25 TX 30 white zinc plating With pilot THS
3301035010TXCVT
3.5 10 TX 15 black zinc plating With pilot THS
3301035012TXCVT
3.5 12 TX 15 black zinc plating With pilot THS
3301035016TXCVT
3.5 16 TX 15 black zinc plating With pilot THS
