Wedge washer for I-beams

The wedge washer for I-beams is a specialized component used in steel constructions, particularly during the assembly of I-beams, to ensure stability and even load distribution. It is a crucial element in the assembly process that allows for proper positioning and leveling of I-beams in construction projects.

Applications

The wedge washer for I-beams is used in various steel constructions, such as:

Industrial Hall Structures: In the assembly of I-beams as load-bearing elements for roofs or walls.
Bridges and Overpasses: In the installation of structural elements of bridges.
Warehouses and Commercial Buildings: In the load-bearing structures of commercial buildings and warehouses.

Benefits

Structural Stability: The wedge washer provides even support for I-beams, contributing to the stability and durability of the entire structure.
Ease of Installation: Due to its shape and design, the wedge washer is easy to use, enabling quick and precise installation of I-beams.
Weather Resistance: Made from high-quality steel, the wedge washer is resistant to corrosion and other external factors, ensuring long-lasting performance in various environmental conditions.

Send product inquiry

Product:

Inquiry:

Firstname and lastname:

Company:

Country:

Phone:

E‑mail:

Attachment:

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

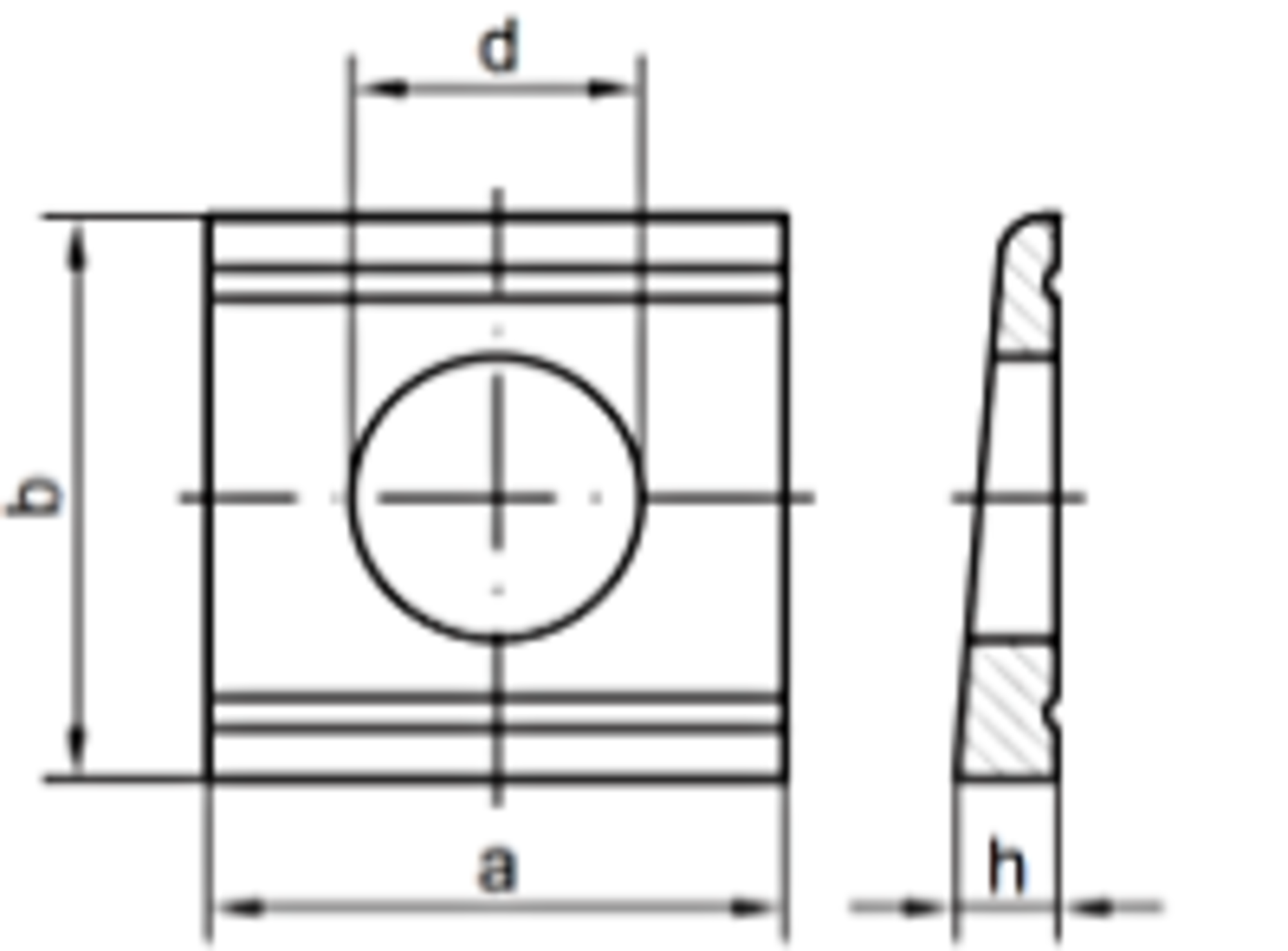

Hole diameter M [mm]

Width b [mm]

Inner diameter d [mm]

Height h [mm]

Variety of coating

Standard

#VALUE!

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Hole diameter M [mm]	Width b [mm]	Inner diameter d [mm]	Height h [mm]	Variety of coating	Standard	#VALUE!	Unit of measure	Availability

1419080GD435T	M8	22	11	4.6	hot-dip galvanized	DIN 435		THS	Product on request
1419080SD435T	M8	22	11	4.6	hot-dip galvanized	DIN 435		THS	Product on request
1419100BD435T	M10	22	11	4.6	white zinc plating	DIN 435	22	THS	Product on request
1419100GD435T	M10	22	11	4.6	hot-dip galvanized	DIN 435	22	THS	Product on request
1419100SD435T	M10	22	11	4.6	raw	DIN 435	22	THS	Product on request
1419120BD435T	M12	30	14	6.2	white zinc plating	DIN 435	26	THS	Product on request
1419120GD435T	M12	30	14	6.2	hot-dip galvanized	DIN 435	26	THS	Product on request
1419120SD435T	M12	30	14	6.2	hot-dip galvanized	DIN 435	26	THS	Product on request
1419160BD435T	M16	36	18	7.5	white zinc plating	DIN 435	32	THS	Product on request
1419160GD435T	M16	36	18	7.5	hot-dip galvanized	DIN 435	32	THS	Product on request
1419160SD435T	M16	36	18	7.5	raw	DIN 435	32	THS	Product on request
1419200BD435T	M20	44	22	9.2	white zinc plating	DIN 435	40	THS	Product on request
1419200GD435T	M20	44	22	9.2	hot-dip galvanized	DIN 435	40	THS	Product on request
1419200SD435T	M20	44	22	9.2	raw	DIN 435	40	THS	Product on request
1419240BD435T	M24	56	26	10.8	white zinc plating	DIN 435	56	THS	Product on request
1419240GD435T	M24	56	26	10.8	white zinc plating	DIN 435	56	THS	Product on request
1419240SD435T	M24	56	26	10.8	raw	DIN 435	56	THS	Product on request
