Wing nut

15
.
10
NMO

The wing nut, also known as a butterfly nut, is a specially designed fastening component that allows for quick and easy hand tightening and loosening without the need for tools. Its characteristic "wings" facilitate manipulation and adjustment of the clamping force.

Applications:

The wing nut (butterfly nut) is ideal for applications where frequent tightening or loosening of fasteners is necessary, especially when access to tools is limited. It is commonly used in industries such as manufacturing, construction, furniture, and other sectors where connections require quick adjustments.

Features and Benefits:

  • Easy Hand Adjustment: The wings enable simple and quick manual adjustment of the clamping force.
  • Hexagonal Shape: Facilitates easy installation, removal, and access to connections.
  • Convenient Operation: Provides comfortable and efficient tightening and loosening of components.
  • Durable Material: Ensures resistance to loads and environmental conditions.
  • Variety of Sizes: Available in different sizes and strength grades to suit various applications.
  • Easy Installation: Simple to mount and integrate with other fastening elements.
  • High Quality and Durability: Excellent craftsmanship guarantees long-lasting performance.
DOWNLOADABLE DOCUMENTS

Recommended

Group
1510

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

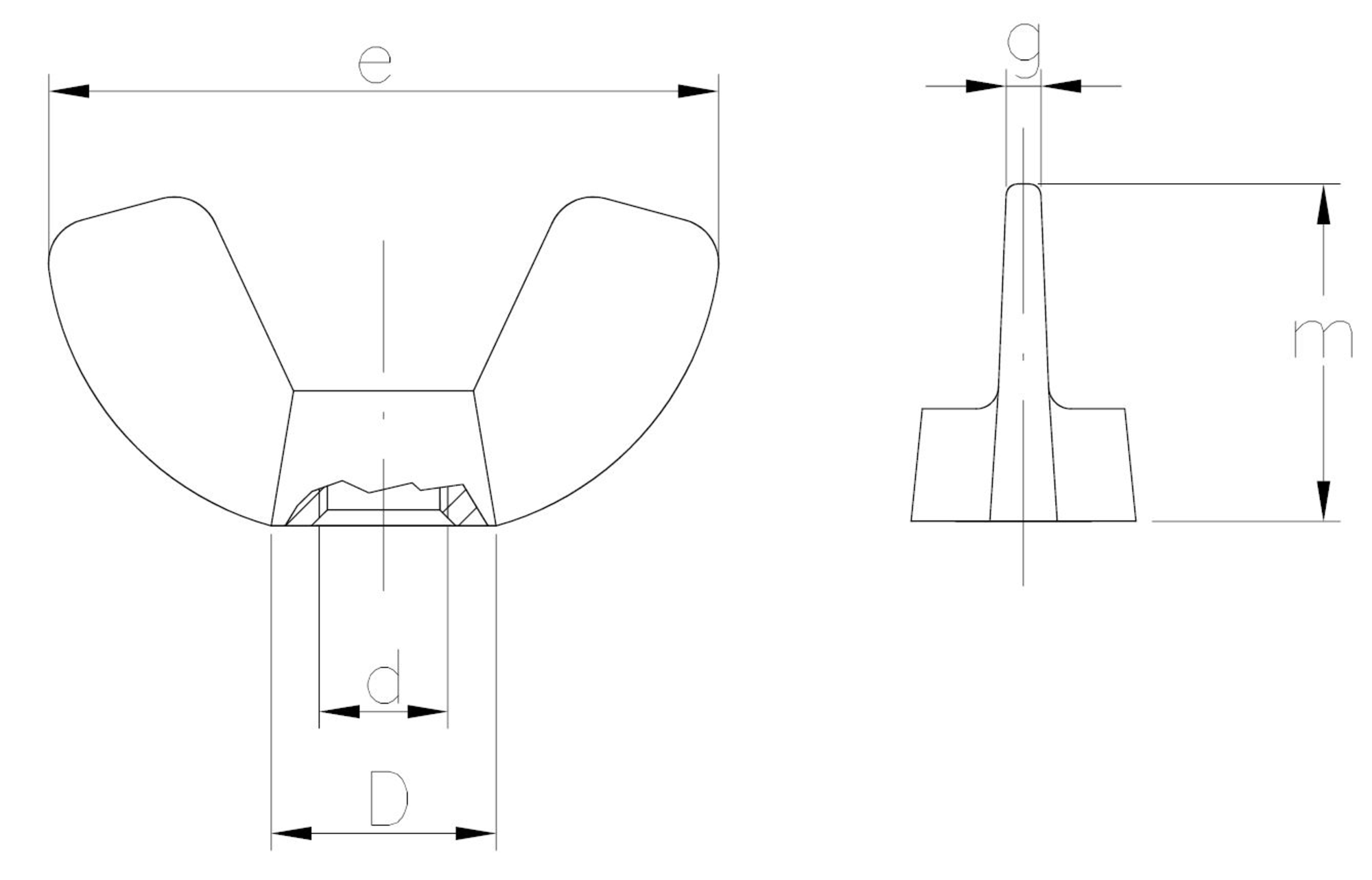

Thread diameter d [mm]
Height m [mm]
Variety of coating
Base diameter D [mm]
Wing diameter e [mm]
Wing thickness g [mm]
Standard
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Thread diameter d [mm] Height m [mm] Variety of coating Base diameter D [mm] Wing diameter e [mm] Wing thickness g [mm] Standard Unit of measure Availability Show More
1510030BD315T
M3 10.0 white zinc plating 9.0 20.0 2.5 THS
1510030BT
M3 10.0 white zinc plating 9.0 20.0 2.5 THS
1510040BD315T
M4 11.5 white zinc plating 10.0 21.0 3.0 THS
1510040BT
M4 11.5 white zinc plating 10.0 21.0 3.0 DIN 314 THS
1510050BD315F03T
M5 11.5 white zinc plating 11.0 21.0 3.0 THS
1510050BD315K
M5 11.5 white zinc plating 11.0 21.0 3.0 KG
1510050BD315T
M5 11.5 white zinc plating 11.0 21.0 3.0 THS
1510050BT
M5 11.5 white zinc plating 11.0 21.0 3.0 DIN 314 THS
1510060AD315T
M6 14.0 yellow zinc plating 12.0 26.0 3.4 THS
1510060BD315K
M6 14.0 white zinc plating 12.0 26.0 3.4 KG
1510060BD315T
M6 14.0 white zinc plating 12.0 26.0 3.4 THS
1510060BT
M6 14.0 white zinc plating 12.0 26.0 3.4 DIN 314 THS
1510060MT
M6 14.0 brass plating 12.0 26.0 3.4 THS
1510080BD315K
M8 16.0 white zinc plating 14.0 31.5 3.8 KG
1510080BD315T
M8 16.0 white zinc plating 14.0 31.5 3.8 THS
1510080BT
M8 16.0 white zinc plating 14.0 31.5 3.8 DIN 314 THS
1510080D315AT
M8 16.0 yellow zinc plating 14.0 31.5 3.8 THS
1510080MT
M8 16.0 brass plating 14.0 31.5 3.8 THS
1510100BD315K
M10 20.0 white zinc plating 18.0 37.0 4.3 KG
1510100BD315T
M10 20.0 white zinc plating 18.0 37.0 4.3 THS
1510100BT
M10 20.0 white zinc plating 18.0 37.0 4.3 DIN 314 THS
1510100MT
M10 20.0 brass plating 18.0 37.0 4.3 THS
1510120BD315T
M12 26.0 white zinc plating 24.0 50.0 5.2 THS
1510120BT
M12 26.0 white zinc plating 24.0 50.0 5.2 DIN 314 THS
1510120MT
M12 26.0 brass plating 24.0 50.0 5.2 THS
1510160BD315T
M16 37.5 white zinc plating 29.0 73.0 6.4 THS
1510160BT
M16 37.5 white zinc plating 29.0 73.0 6.4 THS
1510200BT
M20 white zinc plating THS
