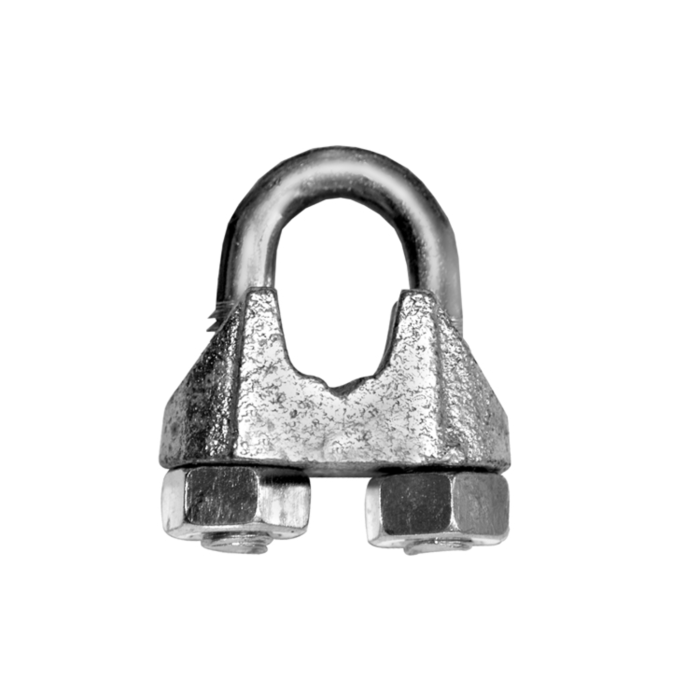

Wire rope clamp INOX

I63

View in store

DOWNLOADABLE DOCUMENTS

Declarations of conformity

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute

Variants available

Variety/type

Rope diameter [mm]

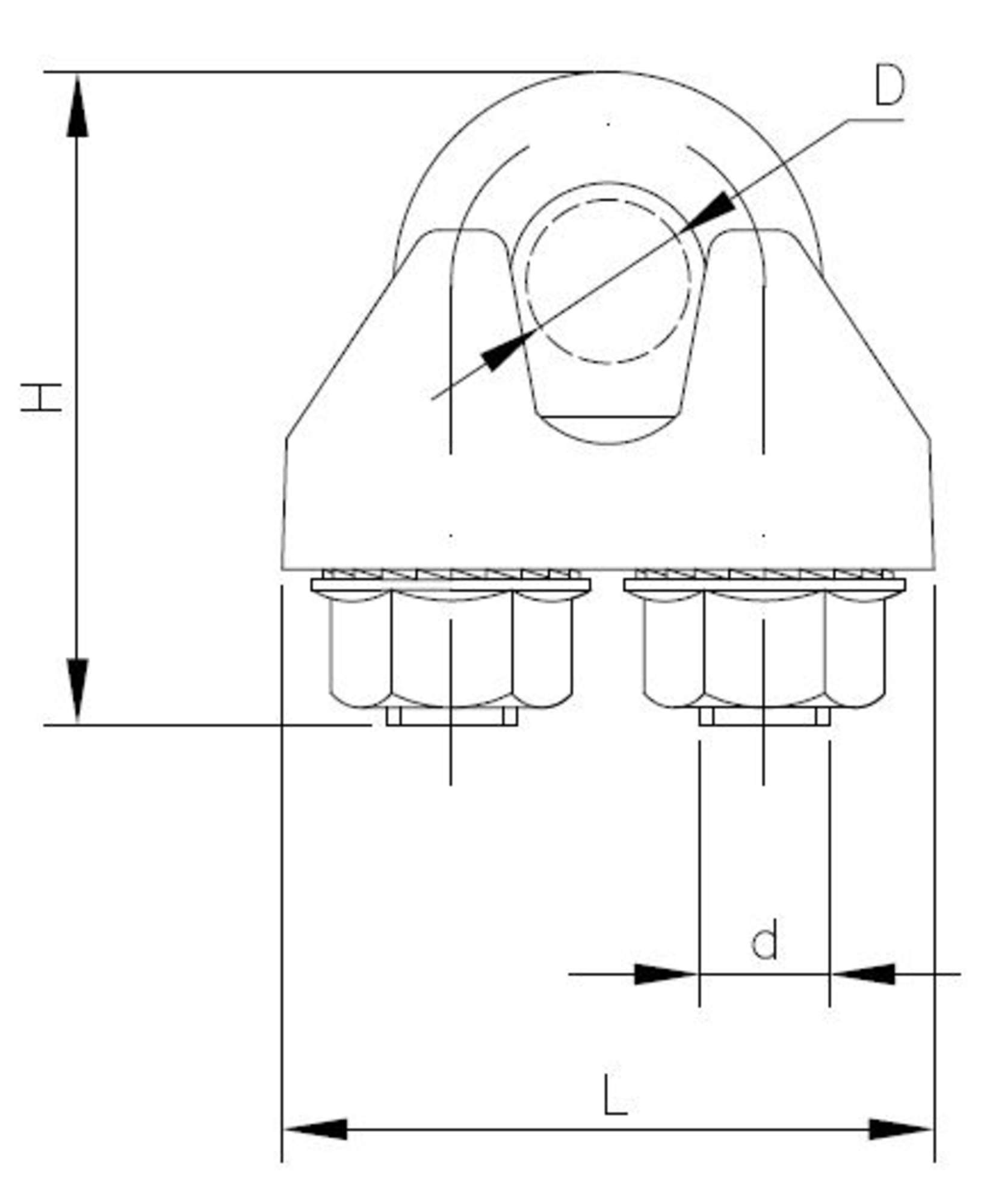

Dimension d [mm]

Dimension D [mm]

Dimension L [mm]

Material

Dimension H [mm]

Unit of measure

Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters

Material index More attributes	Variety/type	Rope diameter [mm]	Dimension d [mm]	Dimension D [mm]	Dimension L [mm]	Material	Dimension H [mm]	Unit of measure	Availability

I63150030A4D741T		3	M4	3	21	A4	20	THS	Product on request
I6315003A4741S		3	M4	3	21	A4	20	PCS	The product is available
I63150040A4D741T		4	M5	4	21	A4	22	THS	Product on request
I6315004A4741S		4	M5	4	21	A4	22	PCS	The product is available
I63150050A4D741T		5	M5	5	23	A4	24	THS	Product on request
I6315005A4741S		6	M5	5	23	A4	24	PCS	The product is available
I63150065A4741S		6.5				A4		PCS	Product on request
I63150065A4D741T		6.5				A4		THS	Product on request
I6315006A4741S		6	M5	6.5	26	A4	28	PCS	The product is available
I63150080A4D741T		8	M6	8	30	A4	34	THS	Product on request
I6315008A4741S		8	M6	8	30	A4	34	PCS	The product is available
I63150100A4D741T		10	M8	10	34	A4	42	THS	Product on request
I6315010A4741S	9.5	10	M10	9.5	34	A4	42	PCS	Product on request
I6315012A4741S		12				A4		PCS	Product on request
I63150130A4D741T		13	M10	13	42	A4	55	THS	Product on request
I6315016A4741S		16	M12	16	50	A4	63	PCS	Product on request
