Wood screw with round head and straight slot INOX

I31
.
22

The wood screw with a spherical head and straight slot is a fastening element designed for use in wooden constructions. Its unique spherical head shape and straight slot make it ideal for applications that require an aesthetic finish and ease of installation. The screw is made from high-quality materials, ensuring durability and resistance to corrosion.

Applications:

  • Construction: Used for fastening wooden elements in structures such as beams, boards, and other frameworks.
  • Furniture Making: Excellent for joining furniture components where aesthetics and strength are required.
  • Gardening: Ideal for mounting garden elements such as gazebos and pergolas.

Benefits:

  • Corrosion Resistance: Made from high-quality materials, the screw is resistant to moisture and variable weather conditions.
  • Aesthetic Appearance: The spherical head and straight slot provide an attractive finish to the connection.
  • Ease of Installation: With a thoughtful design, the installation of the screw is quick and straightforward, speeding up construction work.
Send product inquiry

Product inquiry form

Recommended

Group
I3122

Product variants

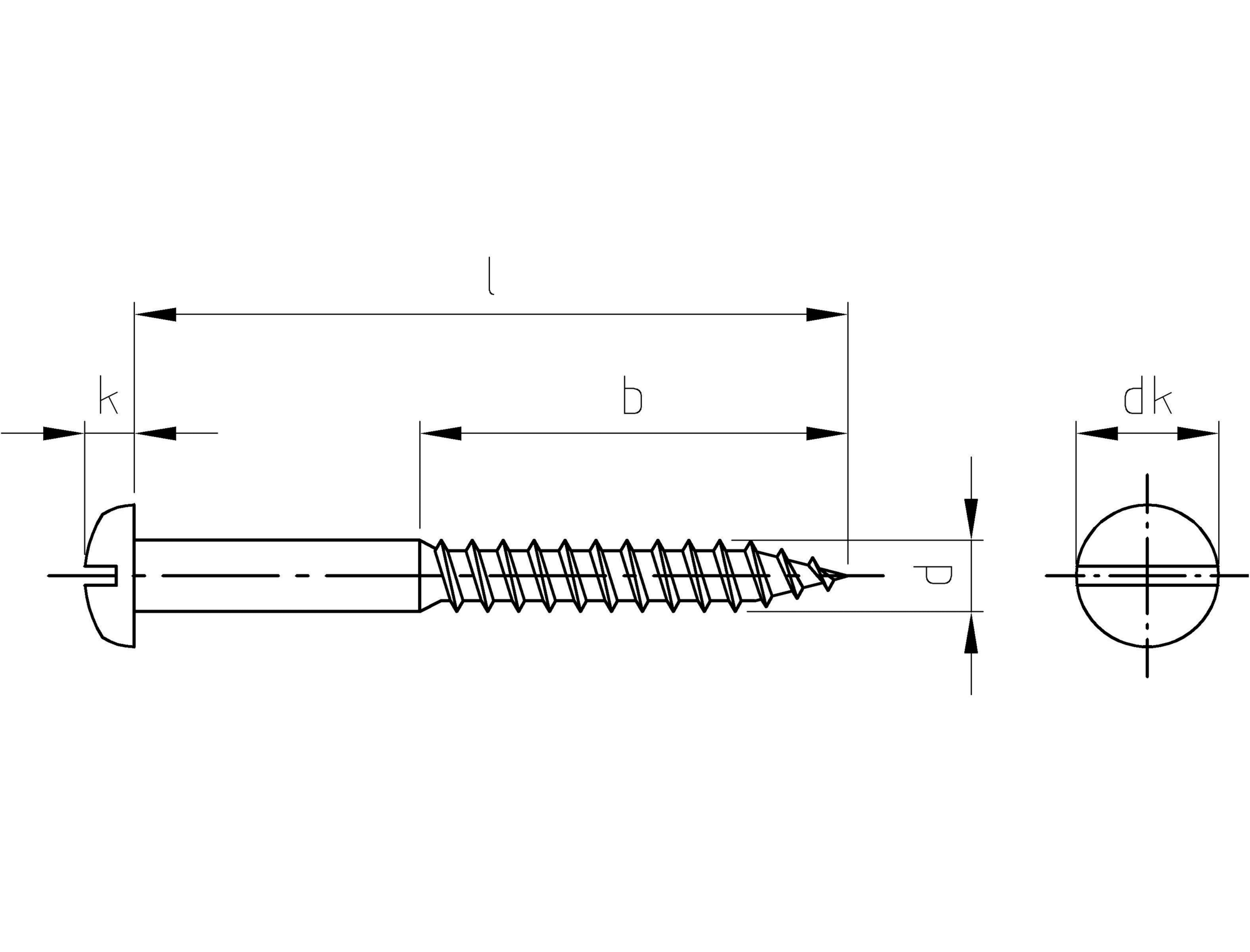

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available
Diameter d [mm]
Length L [mm]
Head diameter D [mm]
Dimension Lg [mm]
Nest
Material
Dimension k [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter d [mm] Length L [mm] Head diameter D [mm] Dimension Lg [mm] Nest Material Dimension k [mm] Unit of measure Availability Show More
I3122025010ZWA296T
2.5 10 5 6 ZW A2 1.7 THS
I3122025010ZWA496T
2.5 10 5 6 ZW A4 1.7 THS
I3122025012ZWA296T
2.5 12 5 7.2 ZW A2 1.7 THS
I3122025012ZWA496T
2.5 12 5 7.2 ZW A4 1.7 THS
I3122025016ZWA296T
2.5 16 5 9.6 ZW A2 1.7 THS
I3122025016ZWA496T
2.5 16 5 9.6 ZW A4 1.7 THS
I3122025020ZWA296T
2.5 20 5 12 ZW A2 1.7 THS
I3122025020ZWA496T
2.5 20 5 12 ZW A4 1.7 THS
I3122025025ZWA296T
2.5 25 5 15 ZW A2 1.7 THS
I3122025025ZWA496T
2.5 25 5 15 ZW A4 1.7 THS
I3122030010ZWA296T
3.0 10 6 6 ZW A2 2.1 THS
I3122030010ZWA496T
3.0 10 6 6 ZW A4 2.1 THS
I3122030012ZWA296T
3.0 12 6 7.2 ZW A2 2.1 THS
I3122030012ZWA496T
3.0 12 6 7.2 ZW A4 2.1 THS
I3122030016ZWA296T
3.0 16 6 9.6 ZW A2 2.1 THS
I3122030016ZWA496T
3.0 16 6 9.6 ZW A4 2.1 THS
I3122030020ZWA296T
3.0 20 6 12 ZW A2 2.1 THS
I3122030020ZWA496T
3.0 20 6 12 ZW A4 2.1 THS
I3122030025ZWA296T
3.0 25 6 15 ZW A2 2.1 THS
I3122030025ZWA496T
3.0 25 6 15 ZW A4 2.1 THS
I3122030030ZWA296T
3.0 30 6 18 ZW A2 2.1 THS
I3122030030ZWA496T
3.0 30 6 18 ZW A4 2.1 THS
I3122030035ZWA296T
3.0 35 6 21 ZW A2 2.1 THS
I3122030035ZWA496T
3.0 35 6 21 ZW A4 2.1 THS
I3122030040ZWA296T
3.0 40 6 24 ZW A2 2.1 THS
I3122030040ZWA496T
3.0 40 6 24 ZW A4 2.1 THS
I3122035012ZWA296T
3.5 12 7 7.2 ZW A2 2.4 THS
I3122035012ZWA496T
3.5 12 7 7.2 ZW A4 2.4 THS
I3122035016ZWA296T
3.5 16 7 9.6 ZW A2 2.4 THS
I3122035016ZWA496T
3.5 16 7 9.6 ZW A4 2.4 THS
I3122035020ZWA296T
3.5 20 7 12 ZW A2 2.4 THS
I3122035020ZWA496T
3.5 20 7 12 ZW A4 2.4 THS
I3122035025ZWA296T
3.5 25 7 15 ZW A2 2.4 THS
I3122035025ZWA496T
3.5 25 7 15 ZW A4 2.4 THS
I3122035030ZWA296T
3.5 30 7 18 ZW A2 2.4 THS
I3122035030ZWA496T
3.5 30 7 18 ZW A4 2.4 THS
I3122035035ZWA296T
3.5 35 7 21 ZW A2 2.4 THS
I3122035035ZWA496T
3.5 35 7 21 ZW A4 2.4 THS
I3122035040ZWA296T
3.5 40 7 24 ZW A2 2.4 THS
I3122035040ZWA496T
3.5 40 7 24 ZW A4 2.4 THS
I3122035045ZWA296T
3.5 45 7 27 ZW A2 2.4 THS
I3122035045ZWA496T
3.5 45 7 27 ZW A4 2.4 THS
I3122035050ZWA296T
3.5 50 7 30 ZW A2 2.4 THS
I3122035050ZWA496T
3.5 50 7 30 ZW A4 2.4 THS
I3122040012ZWA296T
4.0 12 8 7.2 ZW A2 2.8 THS
I3122040012ZWA496T
4.0 12 8 7.2 ZW A4 2.8 THS
I3122040016ZWA296T
4.0 16 8 9.6 ZW A2 2.8 THS
I3122040016ZWA496T
4.0 16 8 9.6 ZW A4 2.8 THS
I3122040020ZWA296T
4.0 20 8 12 ZW A2 2.8 THS
I3122040020ZWA496T
4.0 20 8 12 ZW A4 2.8 THS
I3122040025ZWA296T
4.0 25 8 15 ZW A2 2.8 THS
I3122040025ZWA496T
4.0 25 8 15 ZW A4 2.8 THS
I3122040030ZWA296T
4.0 30 8 18 ZW A2 2.8 THS
I3122040030ZWA496T
4.0 30 8 18 ZW A4 2.8 THS
I3122040035ZWA296T
4.0 35 8 21 ZW A2 2.8 THS
I3122040035ZWA496T
4.0 35 8 21 ZW A4 2.8 THS
I3122040040ZWA296T
4.0 40 8 24 ZW A2 2.8 THS
I3122040040ZWA496T
4.0 40 8 24 ZW A4 2.8 THS
I3122040045ZWA296T
4.0 45 8 27 ZW A2 2.8 THS
I3122040045ZWA496T
4.0 45 8 27 ZW A4 2.8 THS
I3122040050ZWA296T
4.0 50 8 30 ZW A2 2.8 THS
I3122040050ZWA496T
4.0 50 8 30 ZW A4 2.8 THS
I3122040060ZWA296T
4.0 60 8 36 ZW A2 2.8 THS
I3122040060ZWA496T
4.0 60 8 36 ZW A4 2.8 THS
I3122040070ZWA296T
4.0 70 8 42 ZW A2 2.8 THS
I3122040070ZWA496T
4.0 70 8 42 ZW A4 2.8 THS
I3122045016ZWA296T
4.5 16 9 9.6 ZW A2 3.1 THS
I3122045016ZWA496T
4.5 16 9 9.6 ZW A4 3.1 THS
I3122045020ZWA296T
4.5 20 9 12 ZW A2 3.1 THS
I3122045020ZWA496T
4.5 20 9 12 ZW A4 3.1 THS
I3122045025ZWA296T
4.5 25 9 15 ZW A2 3.1 THS
I3122045025ZWA496T
4.5 25 9 15 ZW A4 3.1 THS
I3122045030ZWA296T
4.5 30 9 18 ZW A2 3.1 THS
I3122045030ZWA496T
4.5 30 9 18 ZW A4 3.1 THS
I3122045035ZWA296T
4.5 35 9 21 ZW A2 3.1 THS
I3122045035ZWA496T
4.5 35 9 21 ZW A4 3.1 THS
I3122045040ZWA296T
4.5 40 9 24 ZW A2 3.1 THS
I3122045040ZWA496T
4.5 40 9 24 ZW A4 3.1 THS
I3122045045ZWA296T
4.5 45 9 27 ZW A2 3.1 THS
I3122045045ZWA496T
4.5 45 9 27 ZW A4 3.1 THS
I3122045050ZWA296T
4.5 50 9 30 ZW A2 3.1 THS
I3122045050ZWA496T
4.5 50 9 30 ZW A4 3.1 THS
I3122045060ZWA296T
4.5 60 9 36 ZW A2 3.1 THS
I3122045060ZWA496T
4.5 60 9 36 ZW A4 3.1 THS
I3122045065ZWA296T
4.5 65 9 39 ZW A2 3.1 THS
I3122045065ZWA496T
4.5 65 9 39 ZW A4 3.1 THS
I3122045070ZWA296T
4.5 70 9 42 ZW A2 3.1 THS
I3122045070ZWA496T
4.5 70 9 42 ZW A4 3.1 THS
I3122050016ZWA296T
5.0 16 10 9.6 ZW A2 3.5 THS
I3122050016ZWA496T
5.0 16 10 9.6 ZW A4 3.5 THS
I3122050020ZWA296T
5.0 20 10 12 ZW A2 3.5 THS
I3122050020ZWA496T
5.0 20 10 12 ZW A4 3.5 THS
I3122050025ZWA296T
5.0 25 10 15 ZW A2 3.5 THS
I3122050025ZWA496T
5.0 25 10 15 ZW A4 3.5 THS
I3122050030ZWA296T
5.0 30 10 18 ZW A2 3.5 THS
I3122050030ZWA496T
5.0 30 10 18 ZW A4 3.5 THS
I3122050035ZWA296T
5.0 35 10 21 ZW A2 3.5 THS
I3122050035ZWA496T
5.0 35 10 21 ZW A4 3.5 THS
I3122050040ZWA296T
5.0 40 10 24 ZW A2 3.5 THS
I3122050040ZWA496T
5.0 40 10 24 ZW A4 3.5 THS
I3122050045ZWA296T
5.0 45 10 27 ZW A2 3.5 THS
I3122050045ZWA496T
5.0 45 10 27 ZW A4 3.5 THS
I3122050050ZWA296T
5.0 50 10 30 ZW A2 3.5 THS
I3122050050ZWA496T
5.0 50 10 30 ZW A4 3.5 THS
I3122050055ZWA296T
5.0 55 10 33 ZW A2 3.5 THS
I3122050055ZWA496T
5.0 55 10 33 ZW A4 3.5 THS
I3122050060ZWA296T
5.0 60 10 36 ZW A2 3.5 THS
I3122050060ZWA496T
5.0 60 10 36 ZW A4 3.5 THS
I3122050065ZWA296T
5.0 65 10 39 ZW A2 3.5 THS
I3122050065ZWA496T
5.0 65 10 39 ZW A4 3.5 THS
I3122050070ZWA296T
5.0 70 10 42 ZW A2 3.5 THS
I3122050070ZWA496T
5.0 70 10 42 ZW A4 3.5 THS
I3122050075ZWA296T
5.0 75 10 45 ZW A2 3.5 THS
I3122050075ZWA496T
5.0 75 10 45 ZW A4 3.5 THS
I3122050080ZWA296T
5.0 80 10 48 ZW A2 3.5 THS
I3122050080ZWA496T
5.0 80 10 48 ZW A4 3.5 THS
I3122050090ZWA296T
5.0 90 10 54 ZW A2 3.5 THS
I3122050090ZWA496T
5.0 90 10 54 ZW A4 3.5 THS
I3122050100ZWA296T
5.0 100 10 60 ZW A2 3.5 THS
I3122050100ZWA496T
5.0 100 10 60 ZW A4 3.5 THS
I3122055020ZWA296T
5.5 20 11 12 ZW A2 3.8 THS
I3122055020ZWA496T
5.5 20 11 12 ZW A4 3.8 THS
I3122055025ZWA296T
5.5 25 11 15 ZW A2 3.8 THS
I3122055025ZWA496T
5.5 25 11 15 ZW A4 3.8 THS
I3122055030ZWA296T
5.5 30 11 18 ZW A2 3.8 THS
I3122055030ZWA496T
5.5 30 11 18 ZW A4 3.8 THS
I3122055035ZWA296T
5.5 35 11 21 ZW A2 3.8 THS
I3122055035ZWA496T
5.5 35 11 21 ZW A4 3.8 THS
I3122055040ZWA296T
5.5 40 11 24 ZW A2 3.8 THS
I3122055040ZWA496T
5.5 40 11 24 ZW A4 3.8 THS
I3122055045ZWA296T
5.5 45 11 27 ZW A2 3.8 THS
I3122055045ZWA496T
5.5 45 11 27 ZW A4 3.8 THS
I3122055050ZWA296T
5.5 50 11 30 ZW A2 3.8 THS
I3122055050ZWA496T
5.5 50 11 30 ZW A4 3.8 THS
I3122055060ZWA296T
5.5 60 11 36 ZW A2 3.8 THS
I3122055060ZWA496T
5.5 60 11 36 ZW A4 3.8 THS
I3122055065ZWA296T
5.5 65 11 39 ZW A2 3.8 THS
I3122055065ZWA496T
5.5 65 11 39 ZW A4 3.8 THS
I3122055070ZWA296T
5.5 70 11 42 ZW A2 3.8 THS
I3122055070ZWA496T
5.5 70 11 42 ZW A4 3.8 THS
I3122055075ZWA296T
5.5 75 11 45 ZW A2 3.8 THS
I3122055075ZWA496T
5.5 75 11 45 ZW A4 3.8 THS
I3122055080ZWA296T
5.5 80 11 48 ZW A2 3.8 THS
I3122055080ZWA496T
5.5 80 11 48 ZW A4 3.8 THS
I3122055090ZWA296T
5.5 90 11 54 ZW A2 3.8 THS
I3122055090ZWA496T
5.5 90 11 54 ZW A4 3.8 THS
I3122055100ZWA296T
5.5 100 11 60 ZW A2 3.8 THS
I3122055100ZWA496T
5.5 100 11 60 ZW A4 3.8 THS
I3122060020ZWA296T
6.0 20 12 12 ZW A2 4.2 THS
I3122060020ZWA496T
6.0 20 12 12 ZW A4 4.2 THS
I3122060025ZWA296T
6.0 25 12 15 ZW A2 4.2 THS
I3122060025ZWA496T
6.0 25 12 15 ZW A4 4.2 THS
I3122060030ZWA296T
6.0 30 12 18 ZW A2 4.2 THS
I3122060030ZWA496T
6.0 30 12 18 ZW A4 4.2 THS
I3122060035ZWA296T
6.0 35 12 21 ZW A2 4.2 THS
I3122060035ZWA496T
6.0 35 12 21 ZW A4 4.2 THS
I3122060040ZWA296T
6.0 40 12 24 ZW A2 4.2 THS
I3122060040ZWA496T
6.0 40 12 24 ZW A4 4.2 THS
I3122060045ZWA296T
6.0 45 12 27 ZW A2 4.2 THS
I3122060045ZWA496T
6.0 45 12 27 ZW A4 4.2 THS
I3122060050ZWA296T
6.0 50 12 30 ZW A2 4.2 THS
I3122060050ZWA496T
6.0 50 12 30 ZW A4 4.2 THS
I3122060055ZWA296T
6.0 55 12 33 ZW A2 4.2 THS
I3122060055ZWA496T
6.0 55 12 33 ZW A4 4.2 THS
I3122060060ZWA296T
6.0 60 12 36 ZW A2 4.2 THS
I3122060060ZWA496T
6.0 60 12 36 ZW A4 4.2 THS
I3122060065ZWA296T
6.0 65 12 39 ZW A2 4.2 THS
I3122060065ZWA496T
6.0 65 12 39 ZW A4 4.2 THS
I3122060070ZWA296T
6.0 70 12 42 ZW A2 4.2 THS
I3122060070ZWA496T
6.0 70 12 42 ZW A4 4.2 THS
I3122060075ZWA296T
6.0 75 12 45 ZW A2 4.2 THS
I3122060075ZWA496T
6.0 75 12 45 ZW A4 4.2 THS
I3122060080ZWA296T
6.0 80 12 48 ZW A2 4.2 THS
I3122060080ZWA496T
6.0 80 12 48 ZW A4 4.2 THS
I3122060090ZWA296T
6.0 90 12 54 ZW A2 4.2 THS
I3122060090ZWA496T
6.0 90 12 54 ZW A4 4.2 THS
I3122060100ZWA296T
6.0 100 12 60 ZW A2 4.2 THS
I3122060100ZWA496T
6.0 100 12 60 ZW A4 4.2 THS
I3122060110ZWA296T
6.0 110 12 66 ZW A2 4.2 THS
I3122060110ZWA496T
6.0 110 12 66 ZW A4 4.2 THS
I3122060120ZWA296T
6.0 120 12 72 ZW A2 4.2 THS
I3122060120ZWA496T
6.0 120 12 72 ZW A4 4.2 THS
I3122070040ZWA296T
7.0 40 14 24 ZW A2 4.9 THS
I3122070040ZWA496T
7.0 40 14 24 ZW A4 4.9 THS
I3122070045ZWA296T
7.0 45 14 27 ZW A2 4.9 THS
I3122070045ZWA496T
7.0 45 14 27 ZW A4 4.9 THS
I3122070050ZWA296T
7.0 50 14 30 ZW A2 4.9 THS
I3122070050ZWA496T
7.0 50 14 30 ZW A4 4.9 THS
I3122070060ZWA296T
7.0 60 14 36 ZW A2 4.9 THS
I3122070060ZWA496T
7.0 60 14 36 ZW A4 4.9 THS
I3122070070ZWA296T
7.0 70 14 42 ZW A2 4.9 THS
I3122070070ZWA496T
7.0 70 14 42 ZW A4 4.9 THS
I3122070075ZWA296T
7.0 75 14 45 ZW A2 4.9 THS
I3122070075ZWA496T
7.0 75 14 45 ZW A4 4.9 THS
I3122070080ZWA296T
7.0 80 14 48 ZW A2 4.9 THS
I3122070080ZWA496T
7.0 80 14 48 ZW A4 4.9 THS
I3122070090ZWA296T
7.0 90 14 54 ZW A2 4.9 THS
I3122070090ZWA496T
7.0 90 14 54 ZW A4 4.9 THS
I3122070100ZWA296T
7.0 100 14 60 ZW A2 4.9 THS
I3122070100ZWA496T
7.0 100 14 60 ZW A4 4.9 THS
I3122070110ZWA296T
7.0 110 14 66 ZW A2 4.9 THS
I3122070110ZWA496T
7.0 110 14 66 ZW A4 4.9 THS
I3122070120ZWA296T
7.0 120 14 72 ZW A2 4.9 THS
I3122070120ZWA496T
7.0 120 14 72 ZW A4 4.9 THS
I3122080030ZWA296T
8.0 30 16 18 ZW A2 5.6 THS
I3122080030ZWA496T
8.0 30 16 18 ZW A4 5.6 THS
I3122080035ZWA296T
8.0 35 16 21 ZW A2 5.6 THS
I3122080035ZWA496T
8.0 35 16 21 ZW A4 5.6 THS
I3122080040ZWA296T
8.0 40 16 24 ZW A2 5.6 THS
I3122080040ZWA496T
8.0 40 16 24 ZW A4 5.6 THS
I3122080045ZWA296T
8.0 45 16 27 ZW A2 5.6 THS
I3122080045ZWA496T
8.0 45 16 27 ZW A4 5.6 THS
I3122080050ZWA296T
8.0 50 16 30 ZW A2 5.6 THS
I3122080050ZWA496T
8.0 50 16 30 ZW A4 5.6 THS
I3122080060ZWA296T
8.0 60 16 36 ZW A2 5.6 THS
I3122080060ZWA496T
8.0 60 16 36 ZW A4 5.6 THS
I3122080070ZWA296T
8.0 70 16 42 ZW A2 5.6 THS
I3122080070ZWA496T
8.0 70 16 42 ZW A4 5.6 THS
I3122080075ZWA296T
8.0 75 16 45 ZW A2 5.6 THS
I3122080075ZWA496T
8.0 75 16 45 ZW A4 5.6 THS
I3122080080ZWA296T
8.0 80 16 48 ZW A2 5.6 THS
I3122080080ZWA496T
8.0 80 16 48 ZW A4 5.6 THS
I3122080090ZWA296T
8.0 90 16 54 ZW A2 5.6 THS
I3122080090ZWA496T
8.0 90 16 54 ZW A4 5.6 THS
I3122080100ZWA296T
8.0 100 16 60 ZW A2 5.6 THS
I3122080100ZWA496T
8.0 100 16 60 ZW A4 5.6 THS
I3122080110ZWA296T
8.0 110 16 66 ZW A2 5.6 THS
I3122080110ZWA496T
8.0 110 16 66 ZW A4 5.6 THS
I3122080120ZWA296T
8.0 120 16 72 ZW A2 5.6 THS
I3122080120ZWA496T
8.0 120 16 72 ZW A4 5.6 THS
Welcome to our innovative product configurator!
This interactive way of personalization allows you to create the perfect product tailored to your own preferences. Simply choose from various options such as size, material or coating and watch live as your product takes on a unique character. Thanks to this tool, you have control over every detail, ensuring that the final product will meet all your expectations. Browse through a wide range of options, play with personalization and enjoy the final effect - a product created especially for you!
Choose category
śruby i wkręty bolts and screws
szpilki i pręty gwintowane Threaded studs and rods
nity rivets
Search results Close
