Metal frame anchor

55
.
31
KOS

The Metal Frame Anchor is a reliable component used in the construction industry for securing window and door frames in masonry structures. It is a key element that ensures the stability and durability of frame installations, which is essential for the safety and energy efficiency of a building.

This anchor is suitable for securing window and door frames to most construction substrates, including concrete, solid brick, ceramic blocks, brick, and silicate blocks, as well as autoclaved aerated concrete.

Applications:

Metal Frame Anchors are widely used in construction and renovations. Their main applications include:

  • Securing door and window frames in walls made of brick, concrete, or other structural materials.
  • Installing both internal and external frames in residential, commercial, and industrial buildings.
  • Maintaining stability and proper operation of doors and windows in buildings.

Benefits:

Utilizing Metal Frame Anchors offers numerous advantages, including:

  • Stability and Durability: Ensures stable and long-lasting frame installations.
  • Enhanced Safety: Provides secure fastening of doors and windows, increasing overall safety.
  • Weather and Corrosion Resistance: Designed to withstand environmental conditions and resist corrosion.
  • Customization: Allows for the selection of anchor types tailored to specific construction needs.

Recommended

Group
5531

Product variants

Step 1. Select initial parameters and confirm selection By selecting parameters you narrow down the list of products in the table in step 2

Attribute
Variants available

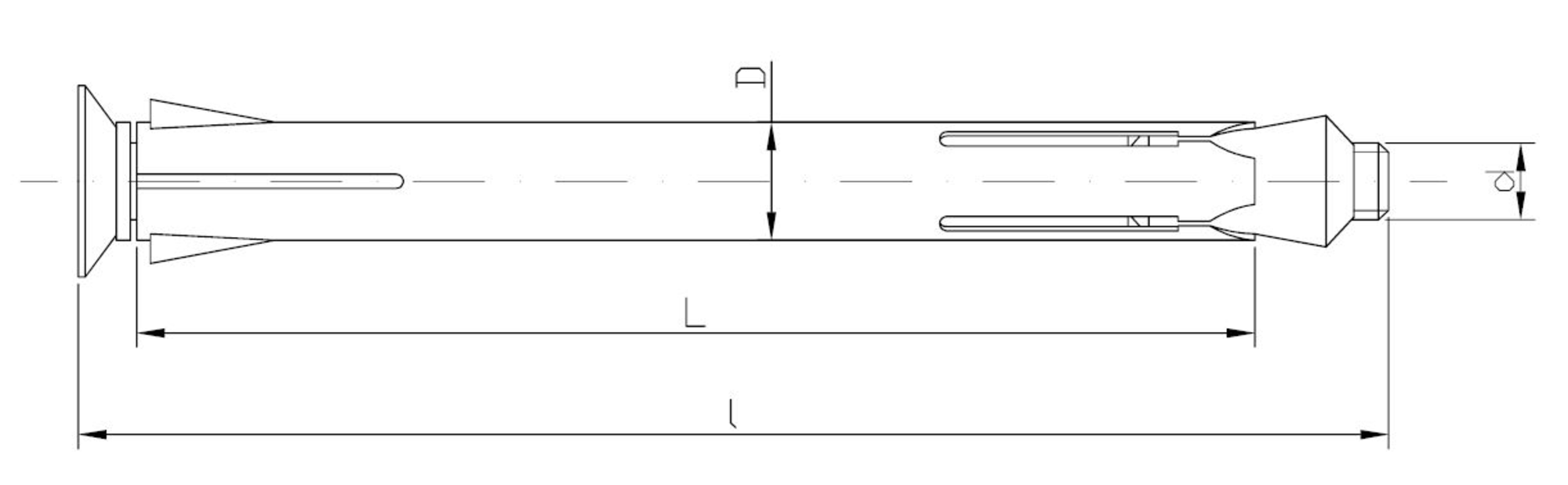

Diameter D [mm]
Anchor length L [mm]
Thread diameter d
Total length l [mm]
Unit of measure
Availability

Step 2. Browse product variants and use additional filters

Browse product variants and use additional filters
Material index
More attributes
Diameter D [mm] Anchor length L [mm] Thread diameter d Total length l [mm] Unit of measure Availability Show More
5531080092S
8 92 M5 102 PCS
5531080112S
8 112 M5 122 PCS
5531080132S
8 132 M5 142 PCS
5531080152S
8 152 M5 162 PCS
5531080172S
8 172 M5 182 PCS
5531100072S
10 72 M6 82 PCS
5531100092S
10 92 M6 102 PCS
5531100112S
10 112 M6 122 PCS
5531100132S
10 132 M6 142 PCS
5531100152S
10 152 M6 162 PCS
5531100182S
10 182 M6 192 PCS
5531100202S
10 202 M6 212 PCS
